Custom-Built Marble CNC Router Machine for Weighty Stone Profiling and Carving

Marble CNC Router Machine Features

• The uniquely designed bed is more suitable for loading heavy stones.

• Heavy-duty machine base is welded with thick-wall steel tubes; it is processed via vibrating stress relief (VSR) to reduce residual stress. Six legs support it with adjustable leveling feet.

• A water coolant mechanism for tool cooling is equipped to suit for stone working. There are two pieces of nozzle next to the spindle.

• Anti-dust and anti-water design on X & Y axis is good protection for the transmission parts.

• The electric control cabinet is an independent type, which is located next to the machine.

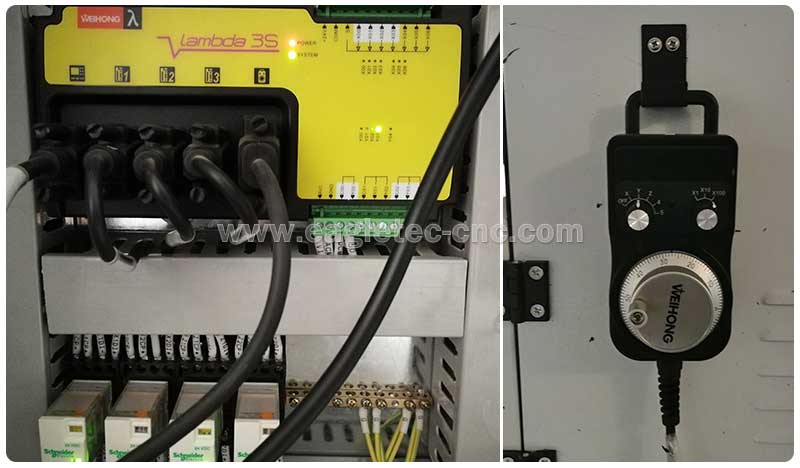

• The machine comes with a WEIHONG 95A Lambda 3S cnc controller, which is a cnc motion control system based on Windows OS. One cnc pendant would come along with the controller as well.

• The operating software is NcStudio Lambda3S, which comes with the WEIHONG 95A controller.

• The assembly of electrical parts strictly conforms to European CE standards.

• Beam is made of steel. It is internally ribbed to stiffen the assembly; this design minimizes vibration while increasing accuracy and repeatability.

• The X and Y axis motion is via a rack and pinion drive, which is hardened for extremely long life and ground for a perfect accuracy; The Z axis is driven by a hardened Germany rolling antibacklash ball screw.

• Each axis of motion is supported on high precision linear guideways that allow for higher feed speeds and a better quality of cut.

• The Y-axis uses a dual drive, one for each side of the gantry.

• All the linear guides are centrally lubricated from a central system.

CNC Marble Carving Machine Quick Details

• 1300x2500x300mm working size – 4 x 8 feet

• Water cooling spindle – 4.5Kw

• Fuling inverter – 5.5Kw

• WEIHONG 95A Lambda 3S cnc controller with MPG

• Control Software – NcStudio Lambda 3S

• Stepper & YAKO YKA2811MA driver

• XY Transmission – helical rack and pinion

• Z Transmission – rolling ballscrew

• Linear Guides – 20mm PMI

CNC Marble Router Machine Utilization

Applicable Industry

• Kitchen Countertop

• Portable Fountain

• Basin

• Fireplace

• Garden

Materials Good for CNC Marble Engraving Machine

It is ideal for Granite, Marble, Quartz, Gem, Jade, Aluminum, Sandstone, Artificial Stone, Solid Surface, MDF, Solid Wood, Plywood, and more.

Technical Parameter of CNC Marble Router Engraving Machine

FAQs about Marble CNC Machine EA-1530ST

Q: What is the Warranty Do You Offer for the Marble CNC Router?

A: It comes with a one-year limited warranty. Under warranty, you would enjoy free replacement for any broken parts except the Vulnerable parts. After the warranty expires, we provide you with constant free online assistance and support as well; in terms of defective parts replacement, it will only be charged based on raw materials’ cost.

Q: Can the Working Voltage of The Stone/Marble Engraving Machine Be Customized According to Our Actual Situation?

A: Yes, it can be built as per your requirement. The default electricity source for this machine is AC380V/3 Ph. If you have a different one, please advise us that, we will build the stone cnc router as per your request.

Q: Which Programming Software Is Suitable for This CNC Marble Engraving Machine?

A: Any software that can output G codes is okay. For example, ArtCAM, Aspire, UcanCAM, MasterCAM, etc., as the machine controller reads the file with the extension name of ***.mmg.

Q: Will You Guide Us to Start the Stone Router Machine Once it Arrived?

A: Yes, we will do that for sure. We provide the best support to our customers, including a full set of practical tutorials for beginners. Further, we also offer one-to-one online technical assistance. You can rest assured that we are capable of guiding you with everything you need to know to start your CNC. Check the testimonials out here.

Q: What Is the Lead Time for the CNC Granite Router?

A: The lead time is 15 business days from the day the deposit is received.

If you like the marble cnc router EA-1530ST, please contact now for a free proposal.
