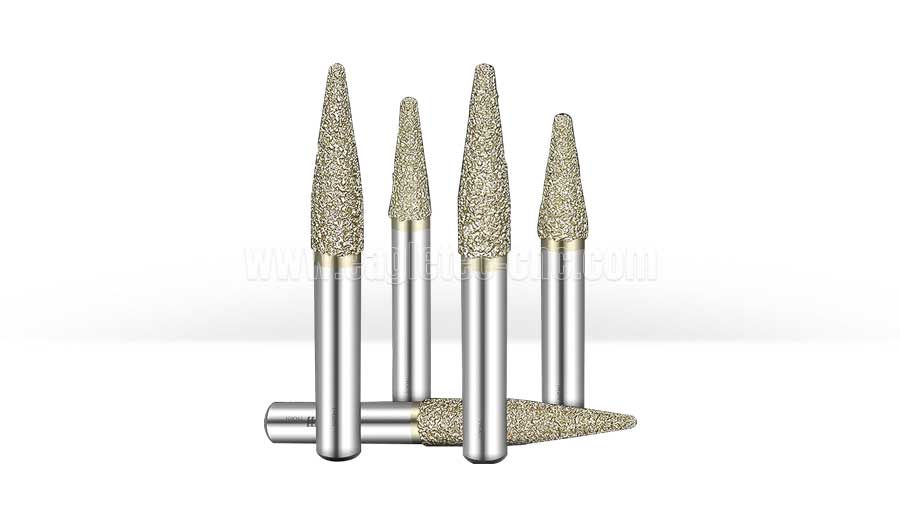

Emery Sintered Taper Ball Nose End Mill Marble CNC Carving Tool

Features of Marble Router Bit CNC Carving Tools

• The blade is made of selected emery that is melted into the blade seating surface through smelting technology. The blade is reasonably sharp and evenly distributed, making it durable and long-lasting.

• To increase the lifespan of the blade, it is designed with a two-layer emery coating.

• The tool body is made of a whole steel bar,  providing excellent rigidity due to the absence of connection points.

• The production process adopts advanced brazing technology, preventing cutter head deformation and ensuring excellent engraving effects.

• A variety of specifications can meet the production needs of different users.

Applications of Diamond Ball Nose Router Bit for Stone

Materials Good For:

Marble, bluestone, sandstone, granite, and more.

Applicable Machines:

Stone router machine, cnc stone engraving machine, cnc 6090 gemstone carving machine

Applicable Operations:

Relief carving

Emery Diamond Taper Ball Nose End Mill Package

• Every ten pieces are put into a small bag.

• The conical ball nose cutters are then wrapped with bubble film and packed into cartons.

Dimension Forms of Marble CNC Carving Tools

Tips on How to Choose a Conical Ball Nose Bit for Your Marble Carving Business

The three most important dimensions to pay attention to are shank diameter, tip size, and blade length. Let's dive into the details.

Shank Diameter

The shank diameter determines the strength of the tool body. Therefore, we should choose a reasonable shank size to prevent the tool from breaking. Generally speaking, for relief depth within 2 cm, an 8mm shank is sufficient. For reliefs exceeding 2 cm, we can go with a 10mm shank. If the user requires high-speed working with a good performance cnc stone engraving machine, we recommend using diamond ball nose end mills with a 12mm shank diameter.

Tip Size

Under the premise of meeting the requirement on fine details, it's better to choose a cutter with a larger tip. The larger the tip, the more durable the tool. For example, if a 6mm tip can meet the engraving precision requirements, please do not go with a 3mm or 4mm tip.

Blade Length

When choosing a blade length for engraving, it's important to consider the required carving depth and the flatness of the stone. Make sure to pick a length that includes a margin to protect the handle from wear and tear. For example, if the required engraving depth is 26mm, we should choose a tool with a blade length of 30mm.

If you like the tapered ball nose end mills for stone carving applications, please contact us today for pricing & specifications!
