How To Set Axis Name Properly in TubeMaster for EagleTec CNC Plasma Tube Cutter

The CNC Plasma Tube Cutter from EagleTec is a popular model that can cut a variety of materials, including round, square, and rectangular pipes, as well as angle and channel steel. The machine comes with TubeMaster software that can perform tasks such as calculating inters ecting lines, simulating trajectories, and generating NC machining code.

We start our topic discussion today with a cutting demonstration of the EagleTec CNC plasma tube cutting machine.

To ensure the successful cutting of the desired part, it is crucial to input the correct NC code into the CNC plasma machine. Failure to do so may result in a flawed product. Upon receiving the software, the initial step is to establish the axis name in order to generate the ideal NC code. Let's delve into the process of accomplishing this task with precision.

Upon launching the TubeMaster program for the initial time, we must select the settings icon to access the settings menu. Next, we need to click on the Codefilesetting icon.

First, we need to locate and click on the rectangular tube icon.

After that, we should click on the icon for the axis name.

A password is required, and the initial password is 123456.

Once that is entered, we need to mark the axis configuration checkbox.

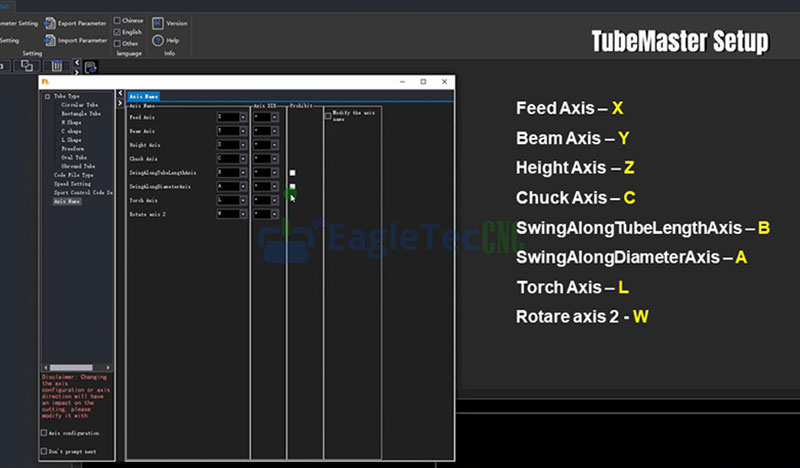

Lastly, we must set and save the axis name as per the instructions provided in the figure below. Once that is done, we can proceed to generate the NC code using the newly configured axis. I hope you have fun with programming!

EagleTec CNC has been dedicated to providing top-of-the-line CNC plasma equipment for 16 years. We not only construct and supply high-quality CNC equipment to our users, but we also make sure they receive exceptional service and after-sales support. This is essential in the mechanical industry as good after-sales support adds value to the product. We firmly believe that selling machines without providing service support is highly irresponsible and we, EagleTec CNC, will never engage in such practices.

If you are in search of high-quality CNC plasma cutting machines and a trustworthy vendor, you have come to the right place. Don't hesitate to reach out to us for more information.
