4 Head CNC Router With 5ft x 10ft Vacuum Bed

Work Demo – Engraving and Cutting with 4 Spindle Head in Action

The working demo includes two parts:

Part 01 - 0:00 Rilievo Engraving with 3 spindles in action

Port 02 - 2:08 Slatwall Panel Cutting with 4 spindles in action

4 Head CNC Router With 5x10 Vacuum Bed Specs

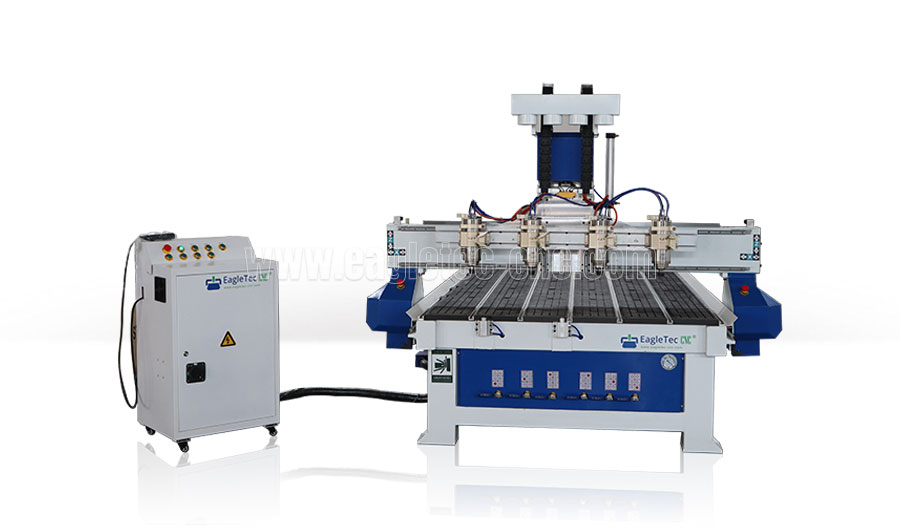

• Design of four spindles ( heads ) gives the machine more output capacity.

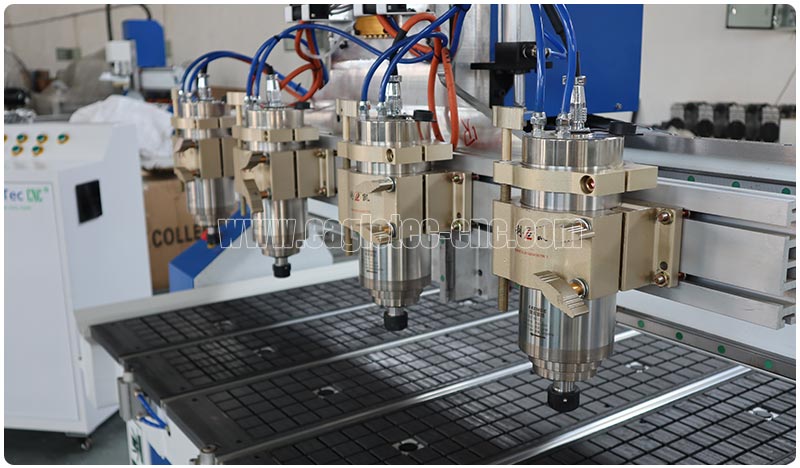

• Adjustable spindle holders provide the operator's convenience for setting the workpiece origin. With this design, we can make the four cutters on the same level by easy adjustment.

• According to your actual production needs, you can take the pneumatic material alignment pop-ups device for the machine.

• It comes with an independent electronic cabinet with an inter-lock protection system.

• This is the interlocking protection switch; only when it is in the off state can the electric control cabinet door be opened.

• All the switches and buttons are labeled in English.

• In order to obtain the best running stability, each spindle is controlled by an independent frequency converter; they are the best brand in China - Folinn.

• The AC contactor adopts the world's top brand Siemens.

• A hybrid servo motion system provides users with these benefits, with three axes running faster and more robust.

• The wiring of the electrical part strictly follows the CE standard, and each cable is labeled with a unique wire code.

• Machine base is welded with seamless steel structure; processed by vibrating stress relief (VSR) to reduce residual stress, and it is supported by 6 legs with adjustable leveling feet.

• Beam is made of steel. A steel beam is superior to aluminum in suppressing and absorbing the forces created during cutting. It is internally ribbed to stiffen the assembly; this design minimizes the vibration while increasing accuracy and repeatability.

• Dual pneumatic counter-balance cylinder to allow very fast and accurate Z-axis positioning.

• The machine is equipped with water-cooled electric spindles, and their advantages are low noise and slight temperature rise, which are ideal for a long time run.

• The X and Y axis motion is via a rack and pinion drive, which is hardened for extremely long life and ground for a very good accuracy; The Z axis is driven by a hardened rolling antibacklash ball screw.

• The Y-axis uses a dual drive, one for each side of the gantry.

• Each axis of motion is supported on high precision square linear guides, which allow for higher feed speeds and a better quality of cut.

• All the linear guides are centrally lubricated from a central system.

• Support re-carving after break point and power failure.

Quick Details of Four Spindle CNC Router with Vacuum Table

• Bed Size 1500x3000mm (5’x10’)

• Water-cooled spindle motor 3.0KW – 4PCS

• RichAuto Auto-Now A11 Handheld CNC controller

• NEMA34 Stepper Motors

• YAKO YAK2811MA Stepper Drivers

•• Square type linear guideways and bearing – size 20mm

• Individual control cabinet

• Central lubrication system

Four Heads CNC Router Application

Applicable Industry

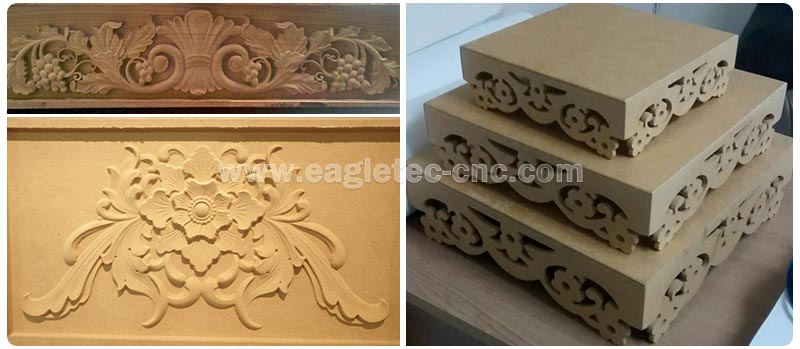

It is ideal for European-style furniture making, Slatwall panel making, mass carving works, artworks, or wood relief sculptures.

Materials

Solid Wood, MDF, ACM, Acrylic, PVC, Foam.

Technical Parameter of CNC Flatbed Router with Four Heads

FAQ Regarding Four Spindle Vacuum Table CNC Router EA-1530VMS4

Q: What Is the Minimum and Maximum Distance Between Each Two Spindle Heads?

A: Equipped with 3.2kw water cooling spindles, the distance (center to center) between every two spindles would be 170mm and 375mm. (MIN-MAX) If the machine comes with 2.2kw water cooling spindles, the distance will be 140mm and 375mm. (MIN-MAX) It can be seen that the minimum spacing depends on the spindle model.

Q: What is the maximum movements on X,Y and Z axis?

A: The Max. movement for XYZ would be 700*3000*200mm.

Q: On Z axle on lowest position what is the distance between the head end and the table?

A: Without mounting a tool (cutter), the distance between the spindle end and the table top surface would be approximately 10 mm when the Z-axis is at the lowest position.

Q: What is the maximin diameter of the tool shank that can be put on the head?

A: It actually depends on the spindle motor. For a machine equipped with 3.2kw, 4.5kw, and 5.5kw spindles, it can hold a 16mm tool shank at most. If the machine comes with 6.0Kw or 7.5Kw spindles, they can hold tools with 20mm diameter shanks at maximum.

Q: Do You Have A Manual or Tutorials Concerning The 4 Heads CNC Router?

A: Definitely yes. We have tutorials in both PDF and Video forms, and they are the particular guide for beginners concerning the exact machine with instructions step by step. According to the feedback, 90% of customers can learn how to operate the machine through our tutorials. Additionally, our technician team is ready for you to give online support/guide at any time. Below is the video instruction for your reference.

Q: You will send the vacuum cnc router machine by sea, right?

A: Yes, by sea. The CNC is too big to be shipped by air.

Q: This machine includes a vacuum, right?

A: Yes, the standard package of the four head CNC includes a vacuum bed.

Q: Is It Delivered Ready to Use, or is Additional Assembly Required Once It Arrives?

A: All assembly works are complete in our plant, and EA-1530VMS4 is shipped as a whole. No additional assembly is required once you receive the machine. What you need to do are plug and play.

Q: What Kind of Warranty Do You Offer for This 4 Head CNC Router?

A: It’s a 24-months warranty since the departure. Under warranty, you enjoy free replacement for any broken parts except Vulnerable parts. After that, we provide you free online support as well; for spare parts, it will be charged on the basis of raw materials cost.

Q: What Is the Lead Time for This Machine?

A: It is 15 to 20 business days on receipt of deposit.
