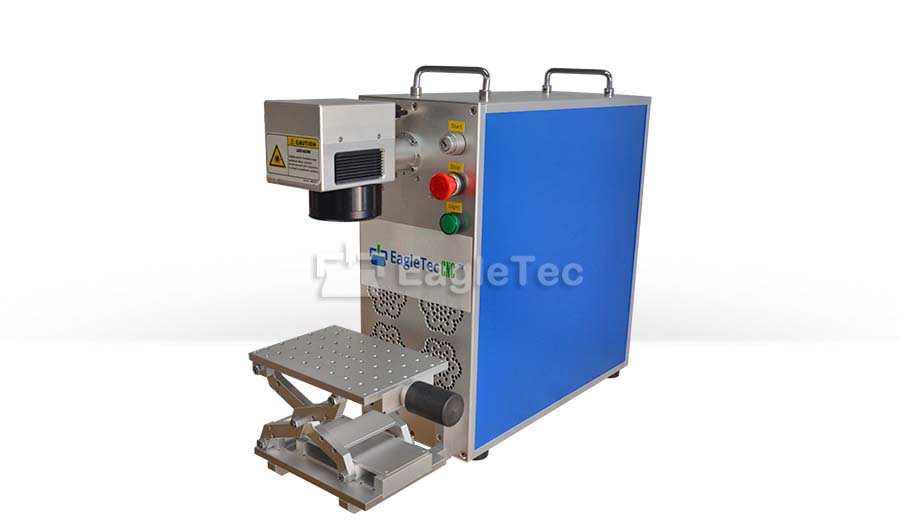

Portable Fiber Laser Marking Machine for Metal

Video Demo – Engraving Plastic and Steel on Portable Laser Marking Machine

In what circumstances should we choose a portable fiber laser marking engraving machine?

Needless to say, it can be very helpful in the situation where the marking or engraving jobs will not be done in a single or fixed location, instead, it will be in multi-site. In accordance with the production request, the machine almost always needs to be moved from one place to another. Such being the case, you need a portable laser marking machine like this.

What Is the Configuration Difference Between A Benchtop and Portable Laser Engraver Machine?

• Apparently, the portable design has a smaller volume and less weight.

• Coming to the point of crucial components used on the machine, both are using exactly the same ones (Raycus fiber laser; Sino-Galvo; Wavelength field lens; Genuine BJJCZ control hardware). This indicates that the overall performance of the portable marking machine is the same as that of the desktop fiber laser marker.

• Unlike that there are diverse marking size options (110x110mm/200x200mm/70x70mm) for desktop, the only access to portable is 110x110mm.

• It is not possible to run a rotary marking attachment on the portable machine, while that's okay for the desktop.

How Do I Know If the Portable Fiber Laser Marking Machine Is Suitable for My Production?

Typically, we should check from the following three aspects.

• The marking and engraving will be often performed in different locations.

• Engraving size 110x110mm is enough for you.

• You have no rotary marking jobs.

If all yes, then this portable fiber laser marking machine is a very suitable machine for you.

Primary Components of One EagleTec Portable Laser Engraving Machine with Fiber Laser Source

It is made up of a fiber laser source, galvo scan head, field lens, case, and fiber. Please refer to the following picture.

Benefits of EagleTec Portable Marking Machine for Steel

• Easy-to-Move: with the portable design, it can be moved from one location to another easily.

• Super Durability: by adopting the best fiber laser generator here – Raycus, the lifespan is up to 100,000 hours. There are 8760 hours in one year. Suppose we let the machine work 24 hours every day, the laser can be used for 11.5 years.

• High Speed: Galvo scan head is the vital factor that determines the marking speed of the machine. SINO-GALVO is what we are using and it is the best one here. It can acquire a maximum speed of 7,000mm/second; If you count, you will find that it is 420m/min. This is really an amazing speed when compare with cnc router.

• High Reliability: it is essential for a reliable portable laser marker to have all its critical parts to be top-level ones. In view of the EagleTec machine, it is a combination of Raycus fiber laser source, sino-galvo scan head, original BJJCZ control system based on Windows, and Wavelength field lens. All is the best in China.

• Free Maintenance: no consumables.

• Low Power Consumption: the total power consumption is less than 500 watts.

• Environment-Friendly: no pollution.

• Excellent Graphics Compatibility: plt, bmp, dxf, jpg, tif, ai.

Quick Details of EagleTec Qualified Portable Laser Marker with Fiber Laser Generator

• Wavelength field lens with 110x110mm marking/engraving size (The best)

• 20W Raycus fiber laser source with extremely long lifespan 100,000 hours (The best)

• SINO-GALVO scanning head (The best)

• Original BJJCZ marking system (The best)

• EzCad marking software

• Footswitch included

Packing List of EagleTec Portable Laser Engraving Machine for Metal

• Tool Box

• Foot Switch

• Spanner Set

• Laser protection goggles dedicated for 1064nm laser wavelength

• Power Supply Cable

Optional Items or Configuration for EagleTec Portable Laser Etching Machine

• HP Laptop (Windows OS in English)

• Diverse options on laser power: 20W/30W/50W

• Smoke Purifier

• X/Y or X/Y/Z adjustable marking platform

Fiber Laser Marking Software and Parameter Setting

In accordance with the BJJCZ control card, the EzCad program is used as the fiber laser marking software. Before delivery, the debugging will be well implemented and the proper parameters are well saved in the software. Additionally, a soft copy with all parameters backup for your exact machine will be provided to you as well. You can rest assured that there is no headache setting issue in the future.

Warranty and Support of EagleTec Portable Metal Marking Machine with Fiber Laser

• The machine is covered with a 24-month warranty since the shipping date. During the warranty, you will enjoy free replacement for any broken parts.

• Full set of user tutorials including both PDF and Video will be provided along with your portable laser marking machine with fiber laser source. They are specific guides for your exact machine with instructions step by step.

• Online live technical support is available whenever you required it.

Please click our support terms to learn more details.

Does This Machine Need On-Site Setup?

No on-site setup is required for this machine. And, the parameters are well saved in the software. Everything is ready to run. Simply plug and play.

Portable Fiber Laser Marking Machine Applications

Scope

It is always used to engraving Logo, design, MFC date, letters, barcode on Electronics (mobile phone; IC parts; PCB, keyboard), Hardware Tools, Precise Instrument and Components, Jewelry, Watch and Clock, Crafts, Signage, Badge Nameplate, Sanitary Ware, Food and Beverages, Tobacco, Medical Devices, and Chemical Reagents, Etc.

Materials Good For

Almost all metal and non-metal materials.

Technical Parameter of EagleTec Portable Laser Marking Machine for Metal

FAQs about Portable Laser Engraver Machine with 20w/30w/50w Fiber Laser Source

How Is the Portable Laser Marking Machine Packed?

• It is tightly wrapped with PVC films for waterproof purposes.

• Then, protection foams are placed for anti-collision.

• Last, the portable laser marker is packed in a strong plywood case that suits to be shipped by both sea and air.

Shipment of Portable Laser Marker Machine with Fiber Laser Source

It can be shipped to any country or region by sea or air, even by express (DHL, FedEx for example); and the solid package is suitable for all means of transportation.

If you like the portable fiber laser marking machine for sale here, simply contact now by clicking the “Inquire Now” icon.
