Best Small Metal Laser Cutting Machine for Gold Silver Jewelry

ASmall Laser Metal Cutter Working Demo: Cut Through Metal Sheet Of 1.5mm Brass And 1mm Aluminum

The small laser cutting machine here is ideal for cutting thin metal sheets. The video below shows how it cut through the 1.5mm thick brass and 1mm thick aluminum.

Pros and Cons of Fully Enclosed Design of Small Fiber Laser Cutting Machine for Jewellery Making

Pros Aspect of Laser Cut Jewelry Machine for Sale

• Since gold and silver are precious materials, we have designed a professional smoke and dust recovery device to recycle material. The gold cutting laser machine adopts a unique, fully sealed design to prevent the loss of gold powder, thus minimizing the loss.

• The dust cover is made of a whole piece of sheet metal and forms a closed cutting area with the laser cutting machine table. The precious metal powder generated during the cutting process falls into the cutting place, making recycling easy.

• A dust extraction device is on the closed sheet metal coupled with an outside blower. This can purify the cabinet's air and recover the precious metal powder more effectively.

• Everyone knows that the wavelength of fiber laser is harmful to our eyes, and for this reason, we usually need to wear goggles when operating a fiber laser machine; But now we have the protective cover on the machine, as long as the cover is closed while the machine is working, the operator won't need to wear goggles anymore. In addition to that, since the cutting area is completely isolated from the operators, the probability of accidental personal injury is greatly reduced. This is the whole point of the fully enclosed design.

Cons Aspect of Fully Enclosed Small Laser Metal Cutter

Coming to the cons of this design, it is that it makes the metal laser cutting machine have strict restrictions on the dimension of the workpieces. As long as it is a bit larger than the acceptable size, there is no way to put that on the working table. If using a cnc fiber laser cutting machine without an encloser for exact same case, we'll have no such issues.

Cutting Capacity of Enclosed Small Laser Metal Cutting Machine with Fiber Laser Source

First of all, please see to it that this small laser metal cutter is equipped with a 1000 watts fiber laser source. So it is capable of cutting the following metal sheets:

• Stainless Steel: Up to 5mm with 0.6 m/min max. cutting speed

• Carbon Steel: Up to 10mm with 0.8 m/min max. cutting speed

For your information, the cutting capacity above refers to the way that cuts with air. Of course, you can have another option – cutting with auxiliary gas, which makes the machine be capable of cutting faster and thicker.

Q: how many kinds of auxiliary gas systems are there for the gold and silver laser cutting machine?

A: Usually, there are three kinds: compressed air, oxygen, and nitrogen. To learn their difference, please check out here: fiber laser metal cut machine (in the middle part of the page)

Q: How can we get such an assist system equipped with best laser cutting machine for gold jewelry? Do you offer?

A: Yes, we do offer the exact option for you. We don't get this system involved in the default configuration, but we do offer that on receipt of your request. Of course, you may be willing to set up the system yourself on your side. Yes, it's great. Every fiber laser cutting machine from EagleTec is well built with the gas circuit, just get the air source ready and connect it with the inlet, and you'll own the system. Both ways are great; please select as you like.

Uses of Small Laser Cutter for Metal Jewelry

Applicable Scene of Compact Metal Laser Cutter

With a small footprint, the small fiber laser cutting machine with a full cover is ideal for metalworking shops to produce customized metal parts, metal arts, and jewelry. In addition, it is also a good choice for hobbyists.

Materials Good For Small Metal Laser Cutting Machine with Fiber Laser Source

Sheet metal, including carbon steel and stainless steel. Especially good for stainless steel, the cutting-edge surface is really very nice, clean, and fine.

Brilliant Configuration of Gold Jewelry Laser Cutter Machine with Protective Cover

• Anti-dust design on all transmission components of the small laser metal cutting machine. It prevents the slags, dust, or debris from dropping on the rack and screw rod and makes the machine better in durability.

• Precise square type linear guides on X, Y, and Z, TBI brand, original materials from Taiwan. The guide system is capable of working for 5 to 8 years without issues.

• EagleTech nozzles dedicated to fiber optic laser cutting application.

Q: Is the nozzle Vulnerable parts for the small gold laser cutting machine?

A: Yes, it is. Several pieces will be provided for free with the machine. And it is better for you to get some extra pieces in stock for further use.

• Dedicated, famous, and best fiber laser cutting system – Cypcut, a system based on Windows OS.

Q: What is the language option for the laser cutting system?

A: Cypcut is in English. And the windows system is in English too.

• The monitor is embedded in the casing, which is very convenient for the operator to run the machine and saves you space.

• The driving system is AC servo – Yaskawa (400 watts, 200 volts). Precise, quiet, and smooth running, outstanding acceleration, and deceleration. To learn all benefits of a servo system, please click here to check out.

• Electronic circuit is in accordance with CE standard with multiple protections including EMI filter, over-load, and over-heat protection.

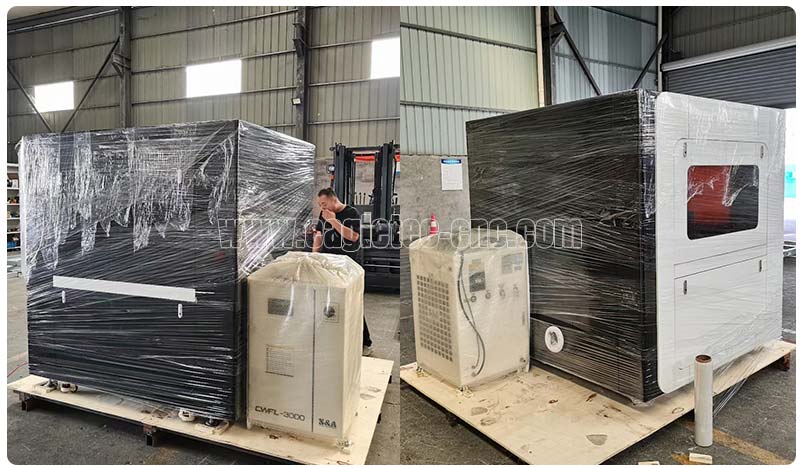

Seaworthy Package of Small Fiber Laser Cutter for Jewelry Making

Quick Details of EagleTec Hobby Metal Laser Cutter

• 23.6”x31.4” Cutting Size (600x800mm)

• 1000W fiber laser source, over 100,000 hours lifespan. More brand options like Raycus, JPT, or IPG.

• Cypcut laser cutting system – hardware and software

• AC servo driving system – Yaskawa 400 watts, 200 volts, 2000rpm

• Original PMI linear guides – square type (Made in Taiwan)

• S&A industrial chiller

Parameter Specification of Mini Fiber Laser Cutting Machine for Gold

FAQ about the Gold Jewellery Laser Cutting Machine with Fiber Laser Generator

Q: What Are the Dimensions Of The Whole Unit? How Much Factory Space Does It Take Up?

A: The footprint for the whole machine would be 1800mm x 1720mm x 1820mm (L*W*H).

Q: What is the warranty for this compact laser cutting machine with a fiber laser generator?

A: It is under a 3-year warranty except for the fiber laser source; the source is a 2-year warranty. All damaged parts (human error excluded) enjoy free replacement support during this period.

Q: Is the gold laser cutter machine will be delivered ready to use?

A: Yes, it is for this machine. Once it arrives at your side, just plug and play.

If you like the small metal laser cutting machine for sale here, please ask for pricing now!
