Sheet Metal Laser Cutting Machines for Sale at Affordable Prices

Demonstration Video - Galvanized Sheet Metal Laser Cutting

In the video, you will see that we use laser steel cutting machine ET-FL2010G to cut out the dragon graphics on the galvanized sheet. The auxiliary gas used is compressed air. The demonstration includes 3 chapters:

• Machine appearance display

• Fiber laser cutting process

• Complete project display

Please enjoy it.

Applications of Sheet Metal Laser Cutter Machines

Applicable Field

The laser cutting sheet metal machine is suitable for the following uses: sheet metal fabrication, metal signs, metal laser cut panels, custom cut metalworks, metal laser cut tree wall decor, and more.

Materials Good for CNC Laser Metal Cutting Machines

Perfect for metal sheets like steel, stainless steel, thin metal, brass, aluminum, titanium, galvanized sheets.

Projects Completed by the Laser Sheet Metal Cutter Machine

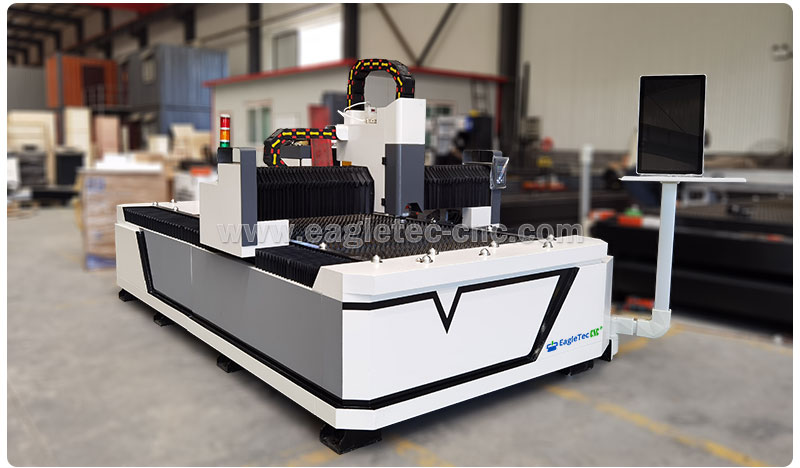

CNC Sheet Metal Laser Cutting Machine Specification

• It comes with an au3tech fiber laser cutting head - model A100M, a model dedicated to metal sheet cutting via laser sources no more than 1000W. The head is equipped with a D30 compound lens group to integrate the beam. It has a diversified interface setting so that it can match a variety of fiber laser sources. By optimizing the optical and water cooling design, the laser head can work stably for a long time under high power.

• The fiber laser source adopts a reliable brand in China: MAX. Power is 1000 watts.

• The machine is equipped au3tech fiber laser cutting system. The system integrates functions such as motion control, path planning, graphic design, typesetting, process adjustment, and system component monitoring. It is an ideal control center for sheet metal cutting laser machines.

• We equipped the control system with an advanced industrial computer. The display is a touch screen, which can be touched by the finger or controlled by a mouse and keyboard. The system comes with a handheld pulse generator for facilitating the origin point setup.

• With the warning lamp, even if we are not in front of the cnc laser metal cutting machine, we can also know the machine's running status clearly. If the error occurs during machine operation, the red lamp will be lit with an alarm sound.

• The whole sheet metal laser cutter machine adopts the Japan Yaskawa AC servo drive system. Quiet operation, fast and precise.

Quick Details of Sheet Metal Cutting Laser Machine EA-FL2010G

• Au3tech fiber laser cutting head model. A100M

• Max. Cutting size 1000x2000mm

• 1000W fiber laser source – Brand: MAX

• Au3tech fiber laser cutting system

• Steel tubes welded machine base

• Unique beam made of aviation aluminum

• Original HIWIN/PMI linear guide rails

• Original T-Win grinding rack and pinion

• Sawtooth cutting table

Global Technical Support Details of EagleTec Laser Cutting Sheet Metal Machine

• A complete set of tutorials would be provided along with the machine, which is clear and well written in English.

• We will guide you through everything from the first-time setup until you put your fiber laser sheet metal cutting machine into production.

• Whenever you have questions about the machine, we are happy to answer and guide you online.

Technical Parameters of Laser Steel Cutting Machine

FAQs about the Sheet Metal Laser Cutting Machines

Q: Can You Tell Me About The Gantry...Cast, Milled, Aluminum, Steel, Or Something Else?

A: The gantry is made of aluminum, and the mounting surface for rails is milled by a CNC machine.

Q: Can You Confirm The 240 V One Stage Power Requirements I Would Need?

A: Yes. The laser tables of all sizes (metal sheet laser cutting machine) can be built to run on 240V single-phase power; as for the laser source/generator, the ones not over 1500w can run off 240V single-phase electricity.

Q: What The Minimum PSI Requirements Are for This 1.5 KW Laser?

A: The minimum PSI requirement depends primarily on the material being cut and the assist gas used, on a case-by-case basis.

Q: I Will Most Likely Not Use The Exhaust Fan. Is A Voltage Stabilizer Needed?

A: If you don't use the exhaust fan, we can remove it from the metal laser cutting machine for sale and reduce its cost. Whether you require a voltage stabilizer depends on your voltage's floating range, from the minimum to the maximum. If you could provide the information, we can give a suggestion on this.

Q: What Is the Included Software to Run the Small Laser Metal Cutting Machine?

A: The metal sheet laser cutter comes with a Cypcut laser cutting program, which runs drawings with the extension of ***.dxf format.

Q: How Can You Get this Laser Cutting Machine For Metal Shipped to Us?

A: We can get our metal sheet fiber laser cutting machines shipped all over the world by sea. You just need to tell us your port of entry, and we can quote the ocean freight for you.

Q: What is the Maximum Thickness Will The Laser Metal Sheet Cutting Machine Cut?

A: It is totally upon the power of the fiber laser source equipped with the laser sheet metal cutter. For a 1000W source, here is the guideline for you: it can cut through 10mm carbon steel, 5mm stainless steel, 3mm aluminum, and 3mm copper sheet as maximum.

Q: What Warranty is the Sheet Metal CNC Laser Cutting Machine Covered?

A: The machine is covered with a 3-year (36 months) warranty since departure date except for the fiber laser source. The fiber laser source is coming with a 2-year warranty. During guarantee, you will enjoy free replacement for any broken components, including the fiber laser generator.

If you like the metal sheet laser cutting machine for sale here, please ask for pricing now.
