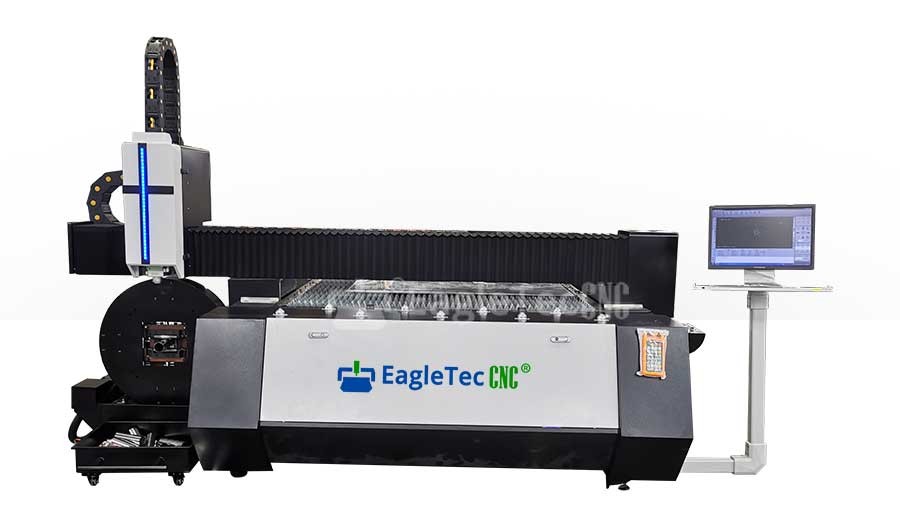

2024 Best Dual-Purpose Fiber Laser Cutting Machine for Sale

Work Demonstration: Fiber Laser Cutting Circle Tube

This working video demonstrates the process of cutting stainless steel round pipes by the machine. Please enjoy it.

Applications

Applicable Field

It is ideal for the fabrication of fitness equipment, metal furniture, display, metal architecture, sheet metal, metal door, and other custom cut metal projects.

Materials

Good for sheets and tubes of stainless steel, brass, aluminum, galvanized metal, and more.

Specification of 2024 Best Dual-Purpose Fiber Laser Cutting Machine

• Although the plate work table is 3 meters long, the machine comes with a 6-meter pipe cutting rotary.

• The rotary is equipped with front and rear air-actuated chucks, which makes tube loading and clamping very convenient.

• There are several supports for the pipe in the middle of the rotary. And the brackets are also air-actuated.

• The laser cutting head adopts the best brand: Raytools. In the standard configuration, we use model BT220 (manual focus); and it can be upgraded to model BM110 (autofocus).

• The work table is a sawtooth bed with a size of 1500x3000mm.

• The motion system of each axis adopts the Yaskawa servo and Nidec planetary reducer, which is fast, precise, and quiet.

• The fiber laser source can be JPT or Raycus brand.

• Cypcut 3000 fiber laser cutting system dedicated for sheet-tube combo machine.

Quick Details of Dual Application Fiber Laser Cutting Machine

• Sheet Cutting Size: 1500x3000mm (In imperial: 5’ x 10’)

• Tube Cutting Size: 220mm D x 6000mm L

• JPT 1500 watts fiber laser source

• Ray tools fiber laser cutting head BT220

• Yaskawa AC servo motor and pack (850W on X/Z, 400W on Y-axis)

• Nidec planetary gear

• SMC Proportioner

• S&A chiller

• Steel tubes welded machine base

• Original HIWIN/PMI linear guide rails

• Original T-Win grinding rack and pinion

• Sawtooth cutting table

• 1.5kw exhaust fan

Technical Parameters of Tube and Sheet Fiber Laser Cutting Machine

FAQs about the Dual Purpose Fiber Laser Cutter

Q: How Can You Get this Machine Shipped to Us?

A: We can get the fiber laser cutter machine shipped all the world by sea. You just need to tell us your port of entry, and we can quote the ocean freight for your reference.

Q: What Warranty is the Sheet and Tube Laser Cutting Machine Covered?

A: The machine is covered with a 24 months warranty since departure date except for the fiber laser source. The fiber laser source is coming with a 2-year warranty. During the guarantee, you will enjoy free replacement for any broken components, including the laser sources.

If you like the dual-purpose fiber laser cutting machine for sale here, please ask for pricing now.
