2024 Best Fiber Laser Cutting Machine for HVAC Ductworks Making

Demo: Laser Cut Metal Ductwork for HVAC

Applications

Applicable Field

The fiber laser cutter machine here is perfect for fabricating metal ductworks for the HVAC systems such as spiral air ducts, ventilation ducts, kitchen smoke exhaust, stainless steel hoods, fan installation, square (common plate flange) air ducts, etc.

Appropriate Materials

Good for coils like galvanized, aluminum, and stainless steel.

Unique Features of Best Fiber Laser Cutting Machine for HVAC System

• Coil Feeding System: The coil feeding system consists of two parts： the material rack and the uncoiler machine. The coil is mounted on the material rack, flattened by the uncoiler, and then sent to the laser cutting table for cutting. The actions are controlled by the numerical control system.

• The uncoiler is driven by an AC motor through the gearbox and equipped with a hydraulic and lubricating system.

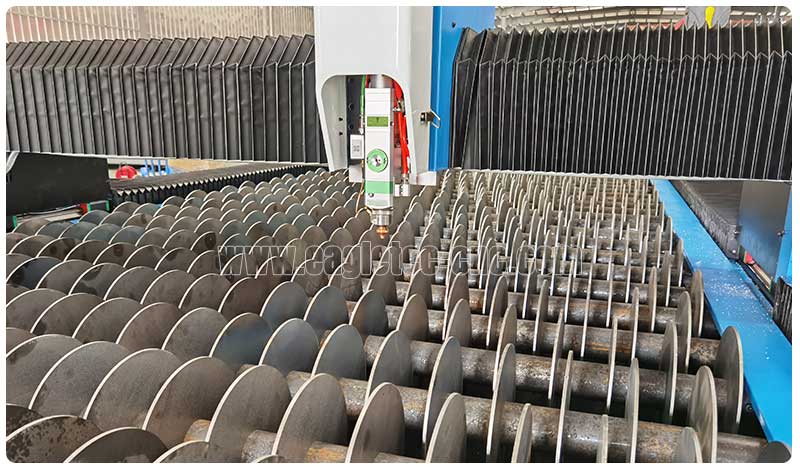

• Powered Roller Bed: the table is made up of rollers powered by AC motors; the role of this system is to transport the metal sheet to a preset position and to transfer the part to the unloading platform after cutting. The benefit of this design is that it reduces the friction between the sheet and the cutting table during the feeding process and cutting and reduces the scratch of the sheet.

• Auto Unloading Platform: After the automatic unloading platform receives the cut parts, workers will mark and classify them here, and then the unloading platform will transfer them out.

• It saves the separate shearing process and manual feeding process and automatically feeds the material according to the length required by the layout drawing to achieve the effect of saving labor and material. This integrated continuous feeding processing and cutting production line avoids the long time and insecurity caused by manual feeding.

Specification of Best Fiber Laser Cutting Machine for Metal Ductworks

• The machine is equipped with branded laser source - MAX. Power is 1500 watts. It is sufficient for HVAC fabrication, as the coil for making ductwork would range from 0.6mm to 1.2mm in thickness.

• To match the 1500 watts laser power, EagleTec CNC has equipped the fiber laser machine for cutting metal ductwork with a HUAK HK-1500 chiller.

• The standard package adopts the Ray Tools fiber laser cutting head Model. BT220. As everyone knows, ray tools is the best fiber laser head in China.

• A Yaskawa AC servo motion system powers the X/Y/Z, and the planetary gearbox work as the transmission components.

• The racks and rails are original items from Taiwan: PMI linear guides and YYC racks.

Primary Configuration of Best Fiber Laser Cutter for HVAC Ductwork

• Cutting Area: 1500x4000mm

• Laser Source: 1500W, brand: MAX

• With a coil feeding system

• With uncoiler machine

• Powered roller cutting bed

• With an automatic unloading system

• Raytools BT220 fiber laser cutting head

• Yaskawa AC servo motors & packs with planetary gearboxes

• SMC Proportioner

• Original PMI linear guide rails from Taiwan

• Original YYC grinding racks and pinions from Taiwan

Technical Parameters of Fiber Laser Cutting Machine with Coil Feeding System

FAQs about the 2024 Best Fiber Laser Cutting Machine for HVAC with Uncoiler

Q: How Can You Get this Big Laser Cutter Shipped to Us?

A: We can get this set shipped worldwide by sea. It would be loaded in a 40 feet dry cargo container based on its package volume. If you could tell us your port of entry, we will quote the ocean freight for your reference.

Q: What Warranty is the EagleTec HVAC Fiber Laser Cutter Covered?

A: The whole machine is covered with a 24-month limited warranty since the departure date. During the guarantee, you will enjoy free replacement for any broken components, including the laser sources.

If you like the HVAC fiber laser cutting machine for sale here, please ask for a commercial proposal now.
