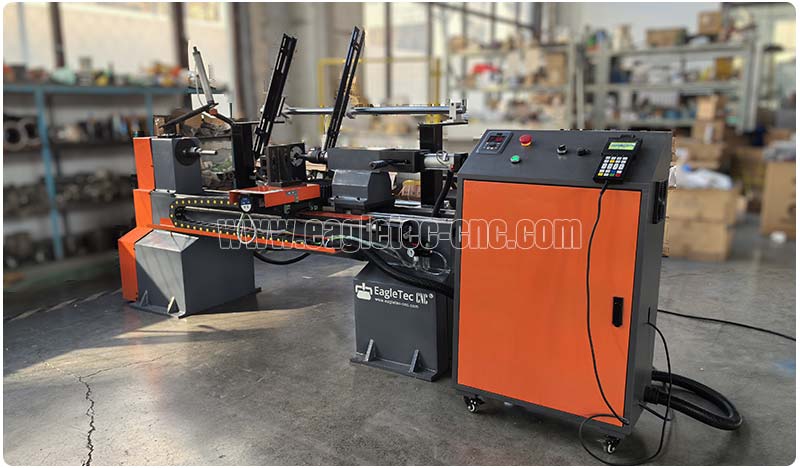

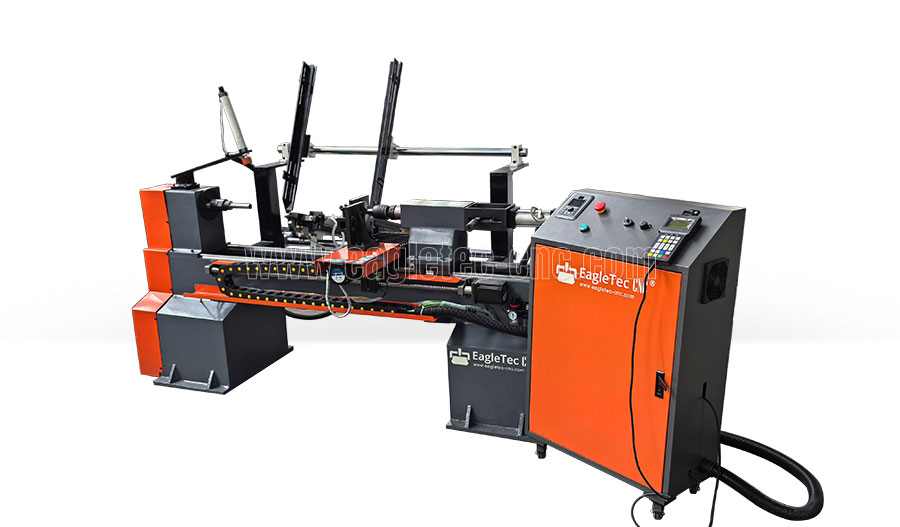

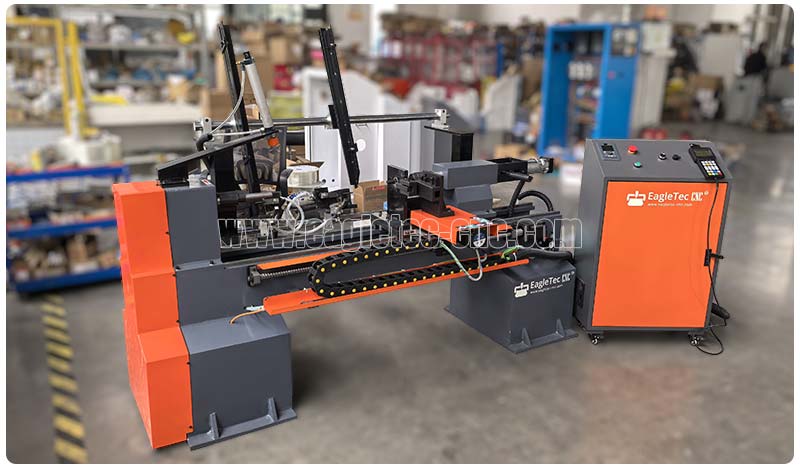

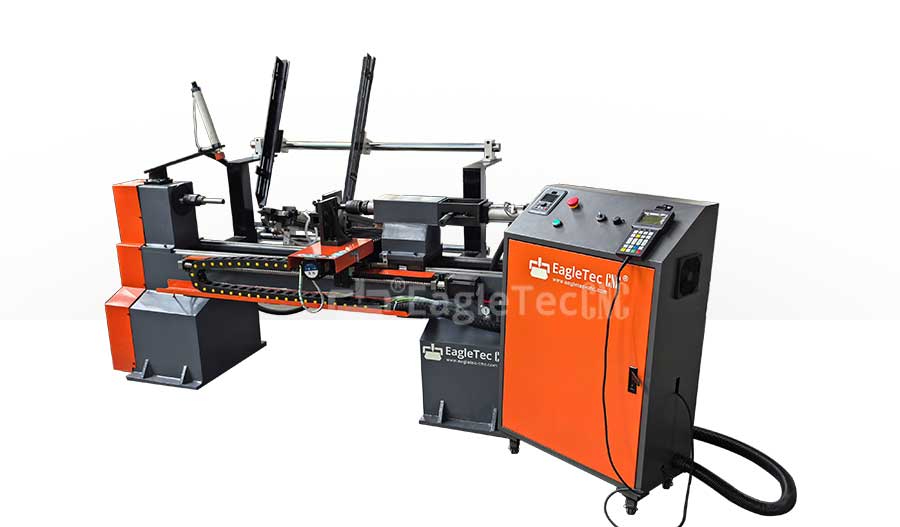

Best CNC Wood Lathe for Drumstick for Sale

Drumstick Turning Demo by ET-L700DT

Some points of the demo:

• Dimension of the wood bar/blank: 25mm*25mm*500mm

• Completed drumstick diameter: 14mm

• Completed drumstick length: 395mm

In this drumstick turning demonstration, you'll see something really impressive: the workpiece stays perfectly stable throughout the entire turning process, even though the completed drumstick is only 14mm wide! Actually, wobbling is a common challenge in drumstick manufacturing. As long as there is no wobble, we can create top-notch drumstick products. So, how does this drumstick lathe do that?

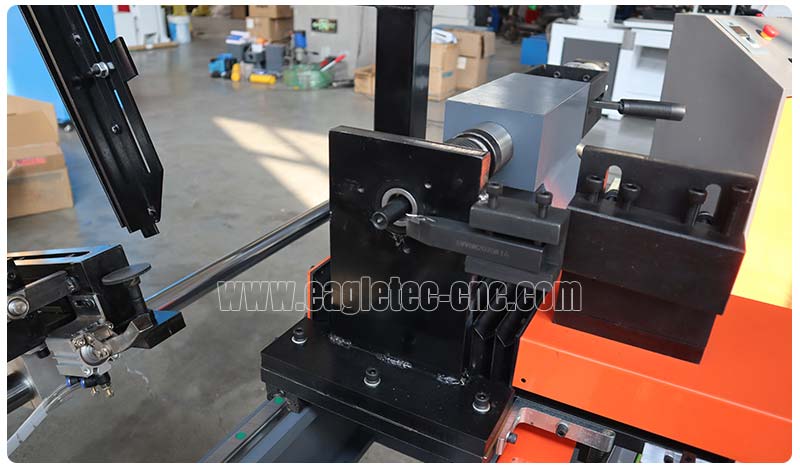

This is thanks to the central sheath and the knife positioned right before it. The tool first trims the wood blank to a size that allows the wood blank to fit tightly into the hole of the sheath while being able to pass through it smoothly. Because there is no gap between the sheath (steady rest) and the workpiece; meanwhile, the steady rest moves in sync with the turning tool, keeping the workpiece tightly clamped from the beginning to the end of the turning process. This means you don't have to worry about any wobbling during the whole drumstick-turning process—everything stays nice and steady!

To ensure the best results, it's important to complete the cut in a single pass. This is how these tools work effectively! If we try to cut in multiple passes, the central sheath will not serve any purpose since, in any following passes, it will no longer be in contact with the workpiece.

Features of Best CNC Drumstick Making Machine for Sale

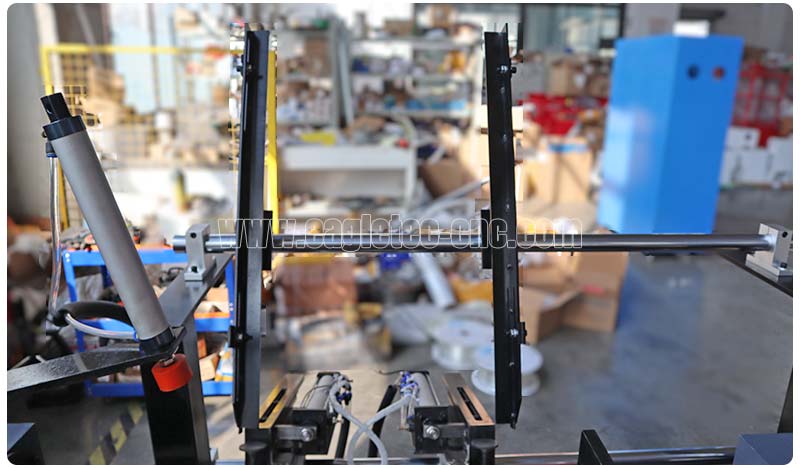

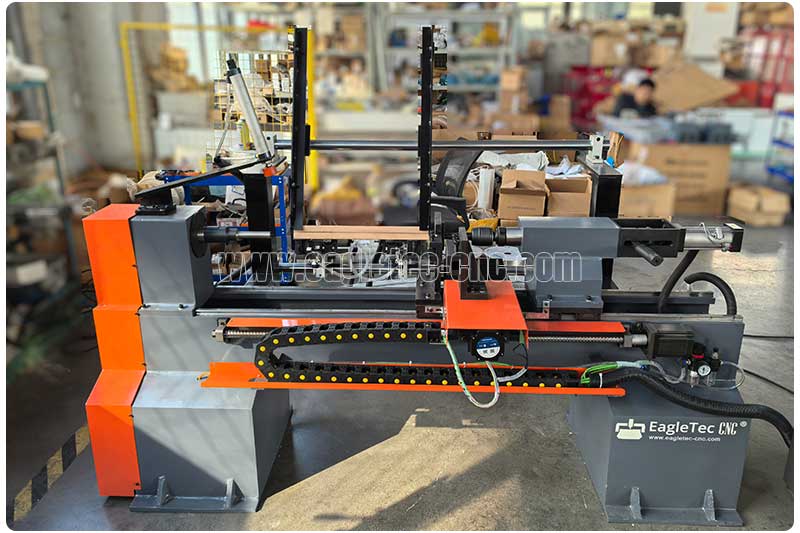

• This machine comes with automatic loading and unloading functions to make things easier for you! Before the turning process starts, the wood blank effortlessly slides from the hopper to the feeder. Then, with a little help from the cylinder, the wood blank is gently pushed into the right spot for clamping. Once it's in place, the pneumatic tailstock kicks in to hold the wood securely. After the processing is completed, the pneumatic tailstock releases the wood blank. After that, the unloading cylinder gently nudges the turned workpiece down to complete the unloading action.  It's all designed to help you work more efficiently and smoothly!

Q: What Are the Benefits of Using an Automatic Feeder on A Wood Lathe?

A: This option can bring you two benefits: first, it improves production efficiency by saving time spent on manual loading and unloading. Second, it makes the operator's job easier by allowing them to focus on just one thing: making sure the hopper is filled with wood in time. With this setup, one operator can take care of several machines at the same time. Therefore, it saves expensive labor costs for you too.

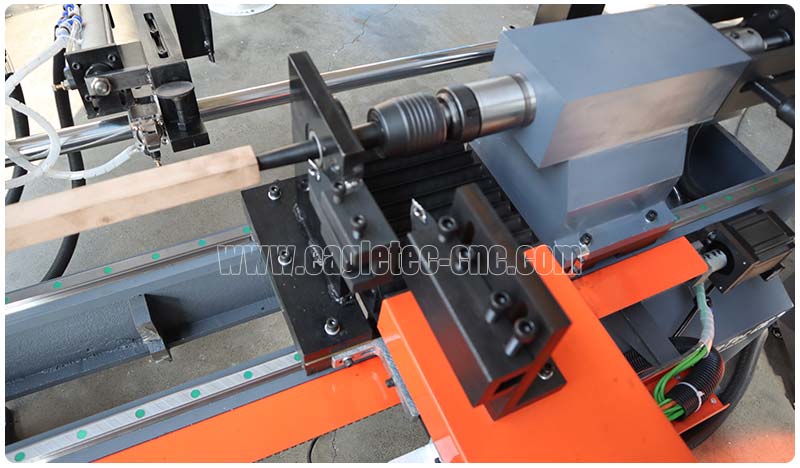

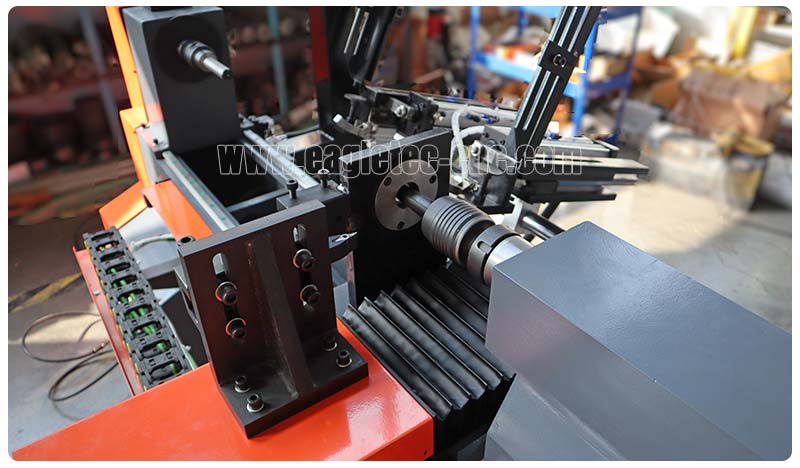

• There is a knife on each side of the center sheath: the knife on the left is used to trim the wood blank so that it fits the hole of the central sheath, while the knife on the right is used to cut the wood into the desired shape.

• To get the best turning results, it's important that the sheath hole diameter matches the outer diameter of your workpiece. When you place your order, please let us know the outer diameter of your wood blank.

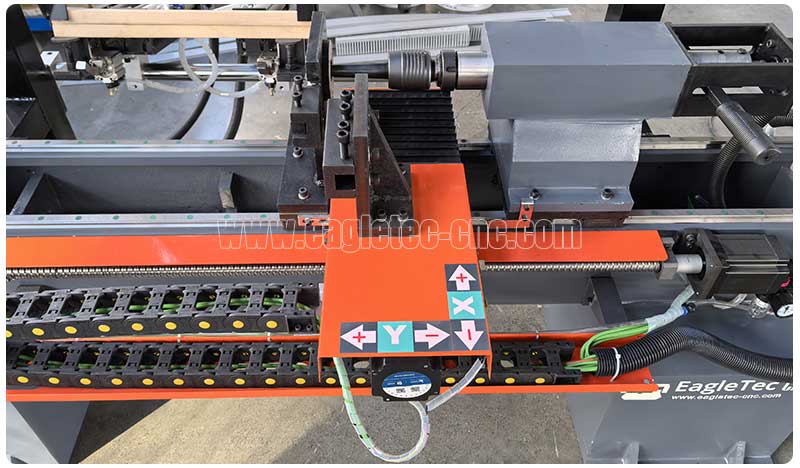

• The lathe has two motion axes it can move: the X axis and the Y axis. The X axis moves at a right angle to the workpiece, while the Y axis moves along the same direction as the workpiece.

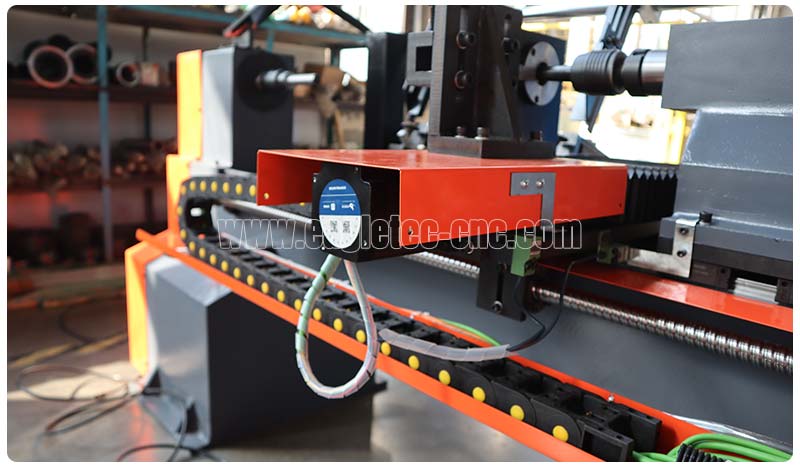

• Each axis of motion is driven by a reliable stepper motor from CW, a top-notch Chinese brand. Smooth and efficient performance!

• The operating system features an easy-to-use handheld controller, allowing novices to master it quickly.

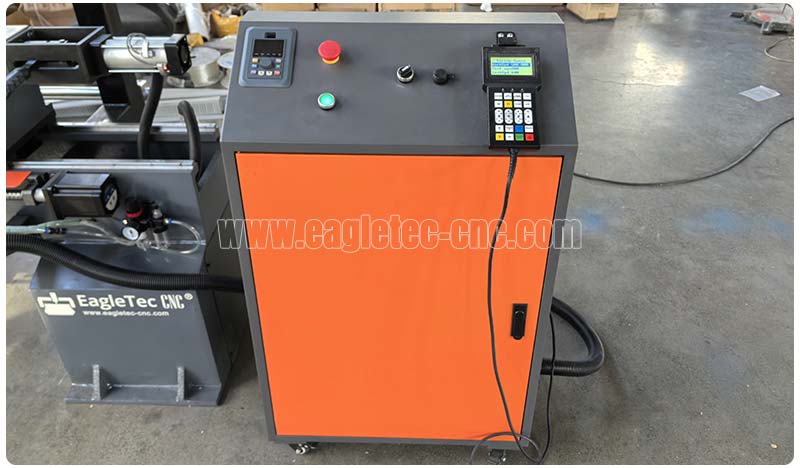

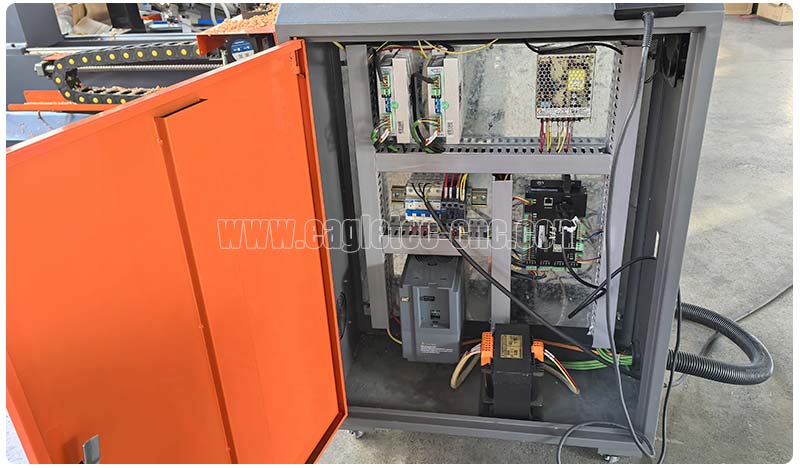

• All electrical components are safely nestled inside a well-sealed control cabinet, helping to keep them protected and extending their service life. It's a great way to ensure everything runs smoothly for years to come!

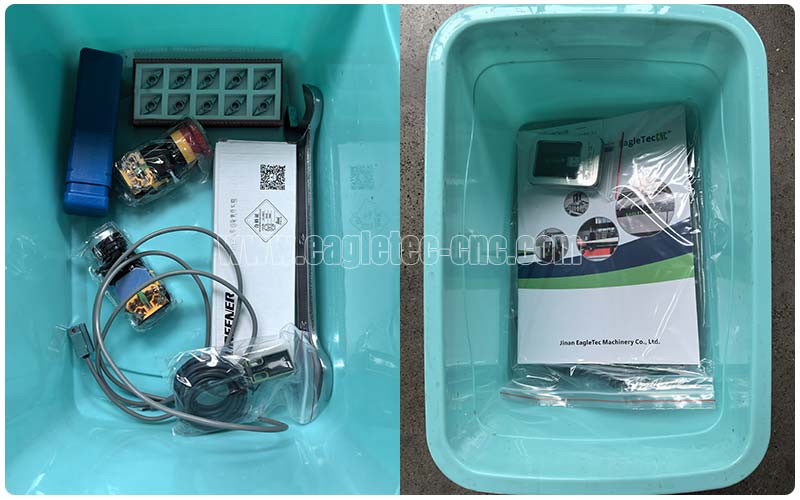

Free Tools & Spare Coming with the CNC Wood Turning Lathe for Drumstick Production

Typically, the free tools and spare for further maintenance are below:

• Toolbox x1

• USB Drive x1 (Tutorials Inside)

• USB Drive x1 (blank one – serving as purpose for file copying)

• Cutters For Sample Making (with one case of blades)

• Allen Wrench Kit

• Spanner

• On/Off Button (spare for further maintenance purpose)

• Limit Sensor (spare for further maintenance purpose)

• Emergency Stop Button (spare for further maintenance purpose)

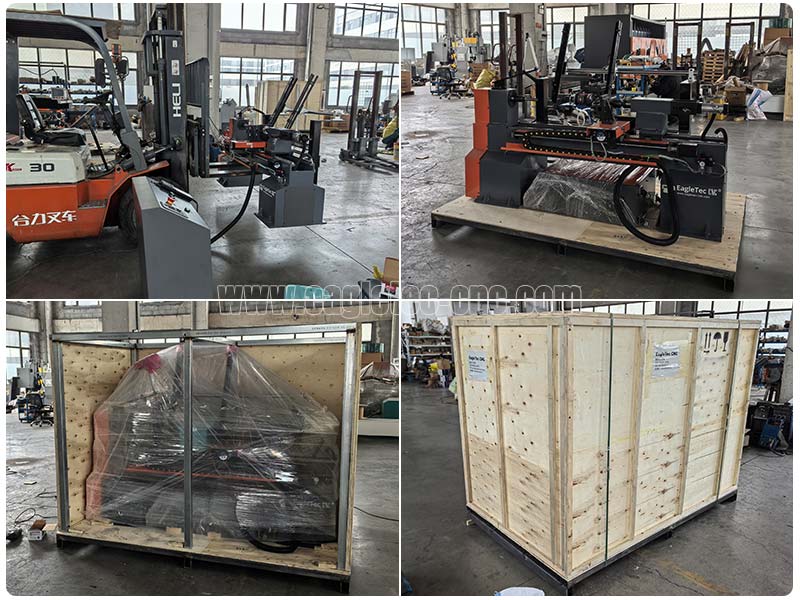

How to Pack the CNC Drumstick Lathe

Step 01. Gently lift the machine with a forklift and place it onto the packaging pallet.

Step 02. Apply oil to the rolling ballscrew and guide rails to prevent rust during transportation.

Step 03. Use small wooden blocks to fix it around the lathe base to keep the whole setup in place in the package.

Step 04. Place a raincoat over the machine and wrap it with stretch film for protection.

Step 05. Use steel brackets to reinforce the packaging to avoid damage caused by collision with other goods in the container.

Step 06. Seal the wooden box; tie the cable ties.

Machine Uses

Materials Good For:

All types of wood, including solid wood, hard wood such as hickory, hornbeam and beech.

Applications:

Drumstick production, or other thin wooden pieces making.

Applicable Operations:

Turning

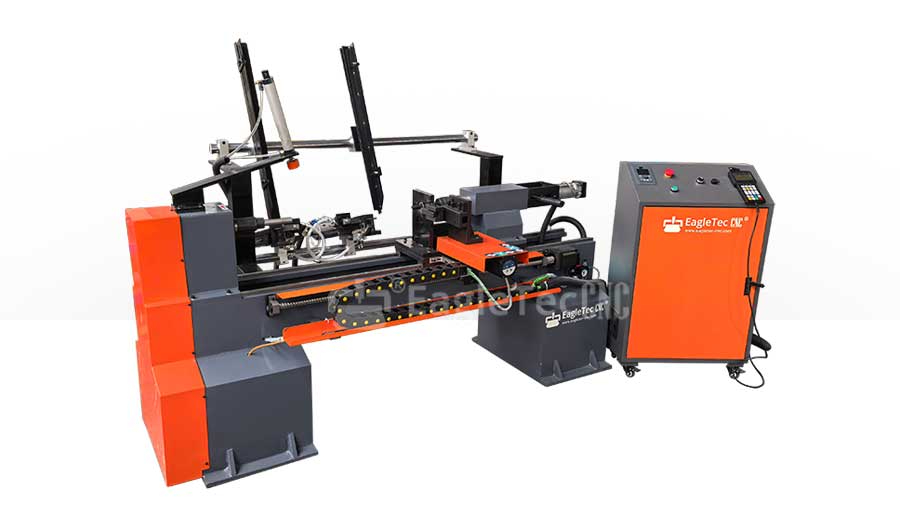

Quick Details of Best CNC Wood Lathe for Drumstick For Sale

• Sheath Through Hole: 25mm (other options can be made to order)

• Max. Length: 700mm

• Auto loading & unloading: Yes

• Numbers of Operating Units: One

• Tools: one trim knife + one turning knife

• Lathe Spindle Motor: 3.0KW

• Operation System: RichAuto Handheld Controller

Technical Sheet of Wood Turning CNC Machine for Drumstick

Q&A about CNC Wood Turning Machine For Drumstick Manufacturing

Q: With Your Lathe, Can I Set All the Radii and Parameters Nicely, And I Can Manufacture My Products?

A: The lathe runs DXF files so that you can program the radius in the DXF drawings. The parameters could be set in the lathe operating system.

Q: How Can the Payment Be Made, Does Paypal Work?

A: If your concern is payment security, we fully understand that. We are not sure if you know that the Alibaba platform provides you with trade assurance if we conduct the deal online. With that, you have a money-back guarantee if we don't deliver the machine to you.

Q: How Long Is the Production/Delivery Time from Payment?

A: The production would take about 15 business days from the time of deposit.

Q: Do You Only Use Stepper Motors Or Do You Also Have A Servo Motor Machine?

A: The servo option is also available, but you'll have to pay some extra cost.

Q: We Are Currently Turning Drumsticks At A Working Speed Of 1000 Mm/Min. Would This Machine Be Able To Do This? (For Diameter 20mm)

A: We are 90% confident it can reach the mentioned speed; however, the outcome depends on the type of wood used. We cannot provide a definitive answer without testing it with your specific material.

Q: Could You Send It to Europe by Freight Train, By Rail?

A: Yes, we can. We can use the China-Europe international freight train for transportation. It is definitely a quicker option compared to sea shipping.

If you like the cnc drumstick turning lathe for sale here, please feel free to reach out today for pricing & specifications!
