Model: EA-PT1325
Category: CNC Plasma Table Kit
Plasma Generator: 200A HUAYUAN
Brand Name: EagleTec CNC
Condition: New Condition
Reference Price: U.S.$7,650 / SET
Price Range: USD6000 to USD9500 / SET in accordance with Different Configuration
Supply Ability: 200 Sets Monthly
Availability: Production after order confirmation (Preorder)
Payment Method: T/T, Western Union, Money Gram
Recommendation:
4.9 based on 5.0

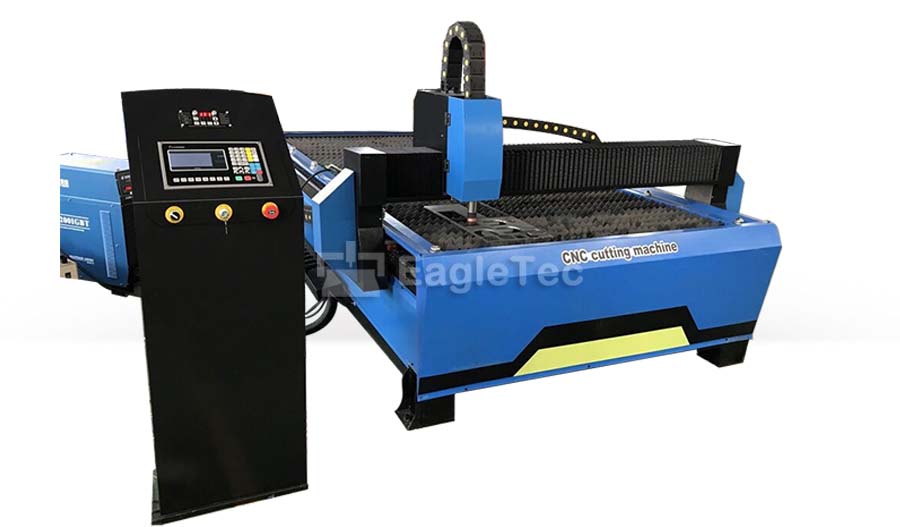

EA-PT1325 is a CNC plasma table 4x8 machine. The actual cutting size is 1300x2500mm (4x8 feet); So, it can cut anywhere on the steel plate in the range of 4x8 feet (1300x2500mm). The plasma cutter equipped is 200A - Brand Huayuan LGK-200IGBT. Accordingly, its maximum quality cutting thickness can be up to 40 mm for all kinds of sheet metal includes carbon steel, stainless steel, aluminum, iron, copper, and brass. The 4x8 plasma table for sale at a good price now.
FYI, here are some other similar cnc plasma cutting machines for your reference, if you have an interest, please check:
Best cnc plasma table 2019 - dual torch with cutting size 5x10 (1500 x 3000mm)
Small cnc plasma table - cutting size 2x3
● Fully welded frame; via vibrating stress relief process to release the welding stress. The mechanical rigidity of EagleTec cnc plasma table is better than that of ordinary machines.
● It's a good solution for both small shops and industrial manufacturing applications.
● The plasma table CNC controller has an LED display, and the menu is in English; it also contains a lot of graphic libraries. Just select the right graphic and input several parameters, and the plasma cutting machine will start working automatically for you.
● The linear guide rail is a square type imported from Taiwan; with high precision.
● Environmentally friendly design with unique fans for dust and smoke removal.
● Dust-proof design on X and Z; Guaranteed cleaning of the transmission components.
● Roller wheels & drawers on the table.
● Equipped with a 200amp plasma cutter, the Model is LGK-200IGBT. It works with the electricity of the AC380V/3 Phase.
A: The cable for the plasma cutting torch from the generator to the machine is 7.5 meters long.
The 4x8 plasma table EA-PT1325 is ideal for metal cutting service shops, CNC machining plants, and industrial fabrication.
Metal sheets include carbon steel, SS, copper, aluminum, and more.
● Heavy load construction
● Actual cutting size 4' x 8' (1300x2500mm)
● Includes 200amp plasma cutter, brand HUAYUAN (Hypertherm is also available)
● STARFIRE cnc plasma table controller
● Automatic torch height controller
● Linear guideway 20mm
● Step drives
Shipping along with your plasma cutting table, EagleTec provides Free nozzles (20PCS) and electrodes (20PCS) for future maintenance purposes.
We provide one set of FASTCAM software for every EagleTec plasma cnc machine.
A: Yes, it can. You can use an AutoCAD product for your drawings first and then use FastCAM to convert dxf in another format that can be run in this 4x8 cnc plasma table.
Full set user tutorials concerning the EA-PT1325 CNC plasma table from hardware to software are provided in English. This is a specific, practical, detailed step-by-step guide for your right machine, not a universal, meaningless one for many different models.
| Machine Model | EA-PT1325 |
| Machine Type | Heavy Load CNC plasma table |
| Plasma Table | Blade type, downdraft with exhaust fan as ventilation |
| Actual Cutting Size | 4x8 feet (1300x2500mm) |
| Cutting Torch Quantity | 1 Plasma torch |
| Plasma Generator | 200A HUAYUAN - LGK-200IGBT |
| Max. Quality Cut Thickness | 40mm |
| Control Mode | CNC |
| Plasma Cutting System | STARFIRE with LED display in English |
| Communication Code | Standard G-code |
| Communication Interface | USB |
| Auto Arc Voltage T.H.C | included brand HYD |
| Linear Guide Rail | Square type, 20mm |
| Drawers | 3 Pieces |
| Driving Motor | Stepper |
| Transmission | Rack and pinion |
| Nesting Software | FASTCAM in English (provided free with plasma machine) |
| Plasma Table Working Power | AC220V, single phase |
| Plasma Cutter Working Power | AC380V, 3Ph |
| Package Dimension | 3200x2260x1800mm (13CMB around) |
| Gross Weight | 1100KGS |
| Free Plasma Consumables | 20 nozzles and 20 electrodes for the plasma cutting torch |
A: The read out on the computer can be changed to English; and we will do that for every machine before delivery.
A: Yes, we can get the plasma head beveled manually; of course, we can also get it vertical by hand.
A: The motors are NEMA34 steppers with 5.8N.m torque; the motor length is 115mm.
A: The appropriate air pressure range for the machine is 0.4 ~ 0.5 MPa (4~5 kg/cm2). Any air compressor no less than 4kw should be sufficient for such a requirement.
A: The warranty is 12-mon since the shipping date; technical support is constant. A full set of user manuals will be provided to you along with the cnc plasma table 4x8. It includes both PDF and Video guides. It will guide you step by step, so it's a practical tutorial for beginners.
A: In our default configuration, the CNC tables run off a volt AC220V±10%; it can also be customized to 110V. Usually, we make it by adding a transformer to the electric control cabinet.
A: Usually, it is 15 business days on receipt of the deposit.
If you like the 4x8 plasma table for sale here, please contact for pricing and details now.
