2024 Best 4x4 CNC Plasma Table for Hobby and Home Shop

CNC Plasma Cutting Video – Using 4'x4' CNC Plasma Table to Cut Flower Patterns on Galvanized Sheet

Please watch the following demo to understand how the 4x4 plasma cutting table works. Hope it helps.

4x4 CNC Plasma Cutter Application

Applicable Field of Best CNC Plasma Table for Small Business

The 4x4 plasma table is perfect for hobbyists, home shops, and small startups (beginners) who will start a small metalwork business.

Applicable Materials of 4 x 4 ft Plasma Table Economical CNC Plasma Cutting Machine

Carbon steel, galvanized sheet, stainless steel, aluminum, and copper. (cut small parts for welding)

Projects completed by the Best Plasma Table for Home Shop

This equipment is often used to fabricate signs, letters, steel decoration, patterns, and metal parts. Because it is equipped with THC, the 4'x4' cnc plasma table here can also cut bending projects, as shown in the lower right corner of the picture below.

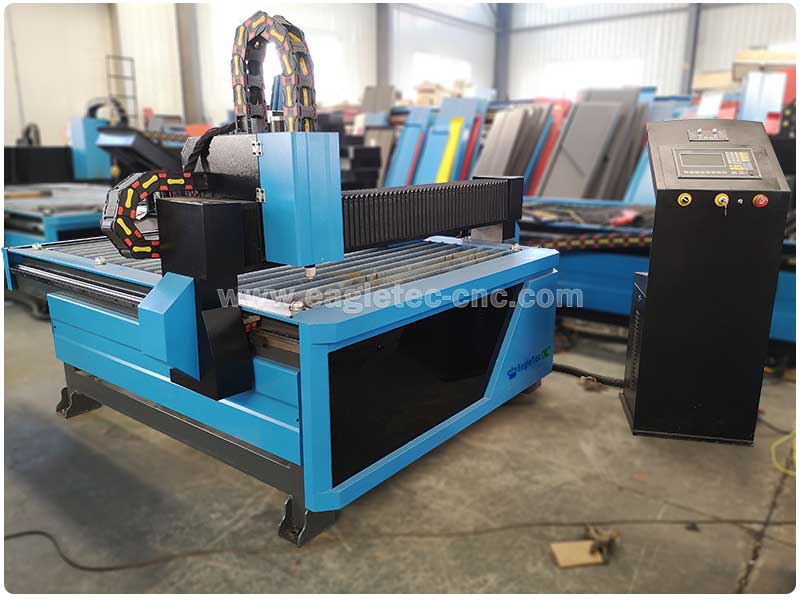

Specification Details of Best 4x4 CNC Plasma Table for Sale

• The plasma table base is heavy-load welded construction, which meets the industrial application requirements well.

• The cutting bed is a blade-type downdraft table; the cutting size is 4'x4'. The exhaust fan is mounted at the back of the table as ventilation. And it can be replaced by a water table if you like.

• The linear guides on the X and Y axis have reliable protection against slag or dust ingress on their surfaces.

• The linear guideways are square type 20mm high precision ones. Square type is prior to round one on durability and precision.

• An arc voltage torch height regulator controls the plasma cutting torch's rising and falling for the cnc table 4x4. Two modes are available: manual and automatic modes. The machine is brilliant and capable of cutting uneven metal plates.

• The plasma cutting system is the StarFire controller with simple programming options, and it has a drawing library of commonly used industrial cut parts. Program input from the USB flash disk.

• There are two brands of plasma cutters for you to choose from - Hypertherm and Huayuan. And lots of options on the power: 45A, 65A, 85A, 105A, 125A, 200A (Hypertherm); 63A, 100A, 120A, 160A, 200A (HUAYUAN). For your information, the Hypertherm 45A and HUAYUAN 63A are popular for hobbyists.

Quick Details of 4x4 Hobby CNC Plasma Cutter Table

• 4'x4' plasma cutting size - 1200mm x 1200mm

• Heavy-load machine base

• Single plasma cutting torch (Oxy-fuel torch as an option)

• Starfire plasma cut system with THC controller

• Blade type downdraft cutting table (water table as an option)

• Stepping motion system

• Plasma cutter: please select as per your production requirements.

Global Support for EagleTec CNC Plasma Cutter 4x4

• We will guide you through everything from the beginning until you put your best 4x4 plasma table into production.

A full set user manual in English, from hardware to software, is provided to you along with the plasma machine. It is a specific, practical, step-by-step manual for your exact device, not a general, meaningless one for many models. Beginners can also master the operation of the machine by following our instructions.

• If you still have any questions, we can guide you online via video chat, video tutorials, text guides, etc.

Technical Parameters of Best 4x4 Hobby CNC Plasma Cutting Table

FAQs about the 4'x4' CNC Plasma Table for Hobbyists

Q: Can You Tell Me What The Z Axis Maximum Clearance Is To The Top Of The Table And What The Z Axis Travel Is?

A: Both are 120mm in the standard configuration of the 4x4 plasma table for sale.

Q: I Assume That The Voltage Is A 220 Single Phase Or Is It 110 Volt.

A: The voltage for the plasma table is a 220v single phase.

Q: What Design Software Is Compatible With The Starfire Controller?

A: Using AutoCAD design software along with our provided FastCAM nesting software is a fantastic choice! And if you have any particular preference about this, we'd love to discuss that with you.

Q: Is It A Stand Alone System That Is Not Connected To The Internet. ( It Would Need The Cut File Transfered By USB)?

A: Yes, it is.

Q: What Other Plasma Cutters Would Work With Your System?

A: Hypertherm plasma cutter is a great option.

Q: How Much More Would A Hypertherm 65 (Not The SYNC) Version If It's Still Available?

A: If you prefer the Hypertherm 65A, we strongly recommend purchasing it locally. The Hypertherm units sold in China are specifically adapted to the country’s power specifications, which operate at 380V. If we equip it for you, we would also need to provide an additional adapter to match your electricity requirements. In this way, the total cost will definitely be more than a local purchase.

Q: Is The Downdraft Better Than A Water Table? If So Why. What's The Pros And Cons Of Both Styles Of Tables?

A: Both options have their own perks and drawbacks, so it’s important to pick what suits us best! Let's take a look at the prime differences between them:

01. Regarding smoke exhaust effectiveness, the water table system outperforms the downdraft type.

02. When considering the convenience of collecting cut parts, the downdraft table is the superior option. Since the parts drop directly into a drawer below, the operator can effortlessly pull out the drawer to get the parts. In contrast, with a water table, the operator has to fish the parts out of the water pan, making it less convenient.

03. From the perspective of removing slag, the down-draw table is easier. When cut parts are not cooled down, we only need to knock them a few times against the ground or another surface, and the slag will fall off. On the other hand, with a water table, the parts are always immersed in water, keeping them cool. For these parts,  we’ll need to use some specialized grinding tools to remove the slag.

Q: Is The Frame Cast Iron? How Is The Water Table Mounted And Secured To The Frame?

A: The frame is a welded construction rather than cast iron. And the water pan is welded to the frame.

Q: What Is The Water Table Made Out Of And Whatever Gauge?

A: The water pan is constructed from galvanized sheet with a wall thickness of 1mm; as we all know, galvanized sheet has excellent rust and corrosion resistance, so durability should not be a problem. This is the most cost-effective solution; therefore, it is widely used.

Q: Which Is Considered Heavier Construction The Water Table Or The Downdraft Table?

A: Whether it is a water table or a down draft table has nothing to do with the construction weight of the machine. The weight is determined by the frame, and both types use the same frame. The only difference is that the water table has an extra water pan. So, no matter which one you choose, you can expect the same construction weight!

Q: Where Would Repair Parts Be Found In The USA If I Needed Them? Such As Motors, Controller Etc.

A: We can ship these parts to you from China via courier. Typically, it will take 3 to 5 days for you to receive the package.

Q: Do You Use Helical Rack And Pinion on the Home CNC Plasma Cutter?

A: Yes, we do use that on X and Y axes.

Q: What Do You Claim The Accuracy Of The Hobby Plasma Cutter Machine To Be?

A: The positioning accuracy of our CNC table would be ±0.2mm. We'd like to remind that plasma cutting is a rough machining process. If you google plasma cutting accuracy, you will find it to be around 1mm at least.

Q: Can You Supply a Quote With A Stainless-Steel Water Table Instead Of A Downdraft Table Please.

A: Yes, we can. There will be an additional cost for the water table option.

Q: Concerning your Oxy-Fuel cutting torch option, what type or brand compatible tips does this use?

A: We use a high-quality domestic flame-cutting torch that is compatible with any Chinese nozzle. When purchasing the CNC plasma table 4x4, you can order some nozzles at the same time.

Q: Do you have a planetary gearbox as an option? If I wanted these gears instead of regular spur gears. Is this possible?

A: Yes, we can get the EagleTec CNC plasma cutters equipped with planetary gears.

Q: Will This Hobby Plasma Table Use an Air Compressor?

A: Yes, that is correct; the home plasma table would work with compressed air. Therefore, it needs an air compressor. We usually do not get it involved in the standard package because some customers may have their own air compressors. We can include it in the offer according to your requirements.

Q: Is There Any Additional Assembly Works Required Once the Hobby CNC Plasma Cutter Table Arrives?

A: The machine is packaged and transported as a whole, so no additional assembly work is required. After receiving the plasma machine, you only need to connect the electricity and the plasma cutter to the plasma table.

Q: What Is The Structure of the Best Home CNC Plasma Table Here? Is This Frame Bolted Together, Or Is It Welded Frame?

A: The machine base is welded structure; it is heavy-load for industrial production purposes. The mounting base surface for linear guides and racks is also precisely milled via a metalworking 5-axis CNC machining center.

Q: Can We Have the Oxy-Fuel Torch On this Hobby CNC Plasma Table?

A: Yes, you can. EagleTec CNC can build this 4 x 4 cnc plasma table with two torches: one plasma and one flame. Or, we replace the plasma torch with a flame torch.

Q: Would The 4x4 Table Be Able To Tilt Cut ? So The Width Would Be No More Than 4 Feet But The Length Could Be Longer If Needed?

A: You can manually tilt the torch of the 4x4 table and hold it in place, and then you can make bevel cuts.

Q: What Is the Delivery Time for This 4x4 Plasma Cutting Table?

A: It is 15 business days on receipt of the deposit.

Q: What Kind of Warranty and Service Do You Provide for The 4x4 CNC Plasma Cutter?

A: Warranty is 12 months from the date of vessel departure; during this period, you enjoy free replacement for any broken parts except Vulnerable parts, such as nozzle or electrode.

Service or technical support is constant. So whenever you need help, just contact us, and you will get an answer from us within 24 hours.

If you like the 4x4 cnc plasma table for sale here, please ask for a free proposal now.
