CNC Vertical Drilling Machine for Aluminium and Steel Profiles

Features of Best Vertical CNC Drilling Machine for Aluminium

• The typical working width is 300mm; and more options on the length are available, such as 2000mm, 4000mm, and 6000mm. Except these, EagleTec CNC can customized the dimension as per your specific production needs.

• The single-arm design facilitates the profile loading and unloading.

• The drilling machine is equipped with a side-push pneumatic clamping mechanism specially designed according to the shape characteristics of profile materials. It can firmly hold the profiles in place during the machining.

• To meet different machining needs, the materials can be clamped downward by mechanical fixtures.

• One mechanical spindle with a 5.5Kw AC servo motor serves as the vertical drilling and tapping head, which is powerful enough for aluminum and steel profiles.

• The motion axes of X, Y, and Z are driven by AC servo motors and 40mm Dia rolling ballscrews.

• The machine comes with a tool magazine, which reduces the down time and increase the productivity.

• All the ballscrews and linear rails are covered by anti-dust cloth to prolong their service life.

• The machining area is surrounded by protective doors to prevent chips from flying onto the operator and causing personal injury.

• Original Taiwan linear guide rails with 45mm width guarantee the motion precision of X, Y, and Z.

• The CNC system is critical for the machining performance. EagleTec CNC drilling machine is equipped with a reliable KND CNC controller. And the system comes with a manual pulse generator, which provides convenience for workpiece origin point setup.

• All the motion components are oiled through a central lubricating system.

• All the small electronics are adopted the branded products like Omron, Schneider, etc.

• The whole circuit part of the machine adopts Yichu brand high-flexible shielded cable; it effectively eliminates problems such as static interference and signal interference, and is reliable and durable.

Application of Aluminum Profile CNC Drilling Machine

Applicable Field

It is perfect for drilling or tapping operations in profile materials.

Applicable Materials

All kinds of metal, including aluminum, steel, iron, copper, etc.

Mechanical Structure Introduction

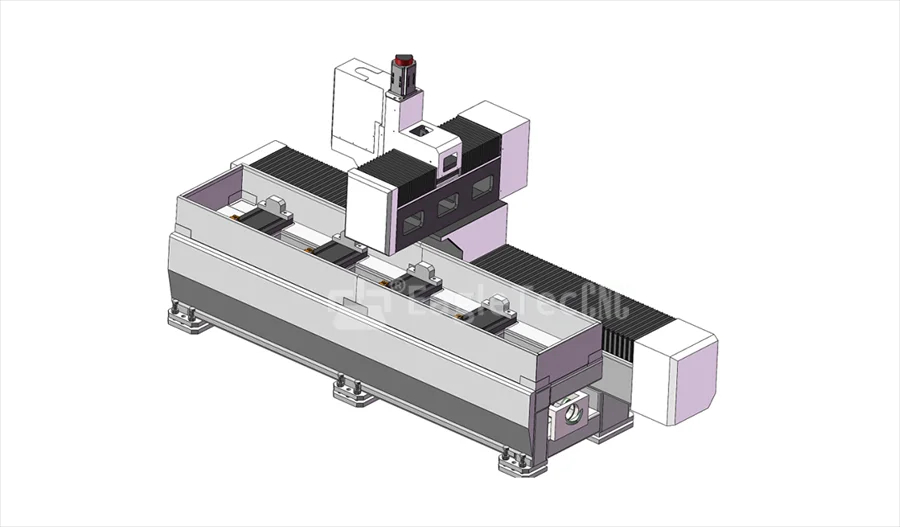

Different from the conventional gantry mechanism with two columns, the machine is a single-arm structure to facilitate the loading and unloading operation of the workpieces. Because for long workpieces like profiles, it is very inconvenient to load from the front or back. While, it is much easier to load and unload from the side. That’s the point of this design. About the motion mechanism, it is the gantry moving and table fixed. This structure can easily handle machining tasks such as drilling and threading.

Quick Details of the China CNC Vertical Drilling Machine

• Working Width: 300mm

• Working Length: 2000 ~ 6000mm

• Max. Height of the Profile: 220mm

• Z-Axis Stroke: 370mm

• Gantry Height: 600mm

• Drilling Capacity: Ø2 ~ Ø30

• Tapping Capacity: M3 ~ M16

• Spindle Power: 5.5KW

• Spindle Rate: 30 ~ 3000 RPM

• Tool Taper: BT40

• Motion System: AC servo motor 2.4kw*3

• Feeding Rate: 0 ~ 10m/min

Packing List

• CNC vertical drilling machine x1

• Toolbox x1

• USB drive with complete tutorials & guide (video and text versions) x1

• EagleTec CNC catalog x1

• Free accessory & tool set x1

Technical Parameters of Vertical CNC Drilling and Tapping Machine

FAQ

Q: What Is the Maximum Drilling Thickness of The Steel Tubes That The Machine Can Drill?

A: The machine can tackle steel tubes with a wall thickness not over 30mm. Please note the 30mm refers to the wall thickness of the steel, not the overall height of the workpiece. Because profiles or steel pipes are hollow.

Q: What Are the Maximum and Minimum Holes Can the Machine Drill?

A: The machine can drill holes ranging from Ø2 ~ Ø30.

Q: What Is the Maximum and Minimum Diameter That the Machine Can Tap?

A: It's tapping capacity is from M3 ~ M16.

If you like the vertical cnc drilling machine for profiles here, please contact us today for pricing & specifications!
