2.2 KW Air Cooled Spindle GDZ93x82-2.2 ER25 220V 18000RPM 10A

Model: GDZ93X82-2.2

Category: CNC Spare

Condition: New Condition

Reference Price: USD280.00 / SET

MOQ: 1 SET

Supply Ability: 500 Sets Monthly

Availability: In Stock

Delivery Time: in 24 hours on receipt of payment

Net Weight: 7.7KG

Package Dimension: 410x190x180mm

Payment Method: Wire Transfer, Western Union (Western Digital), Money Gram.

Recommendation: 2.2 KW Air Cooled Spindle GDZ93x82-2.2 ER25 220V 18000RPM 10A 4.9 based on 5.0

Inquire Now Next Product

PRODUCT DESCRIPTION

Brief Description

The 2.2 kw air cooled spindle for sale here is the model. GDZ93x82-2.2. In comparison with other similar spindles, it has a square shape without flanges on both sides, also its acceptable collet size is ER25. For your information, a majority of 2.2kw air cooling spindles on the market come with ER20 collets. Our GDZ93x82-2.2 is often used in woodworking cnc router machines and multi-head cnc routers.

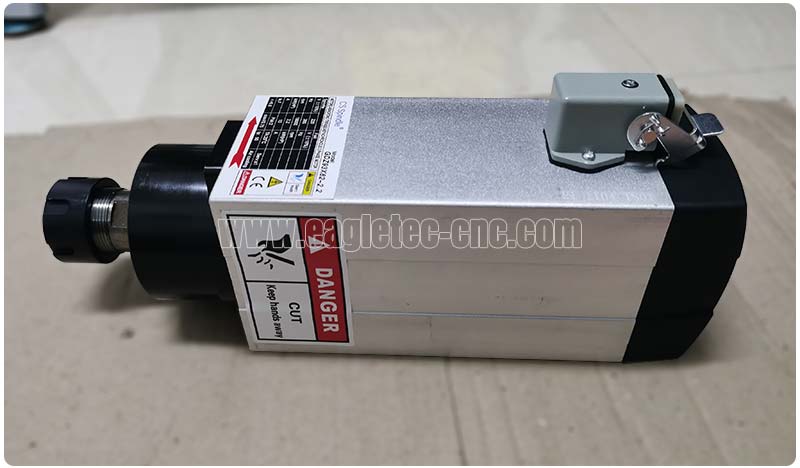

2.2 kw air cooled spindle gdz93x82-2.2

2.2 KW Spindle Air Cooled Nameplate

nameplate of 2.2 kw spindle air cooled motor

ER25 2.2KW Air Cooled Spindle Motor Features

• It is square-shaped without flanges on both sides.

ER25 2.2KW Air Cooled Spindle Motor in stock

• It comes with ER25 collets, not ER20. And the acceptable tool diameter range is from 3mm to 16mm.

2.2kw air cooled spindle motor er25 220v 1800rpm

• There is a fan on the top of the main shaft, which is directly connected to the shaft of the motor. The rotation of the motor enables the fan to spin to cool the motor.

2.2kw air cooled cnc spindle motor with cooling fan on top

How to Hook Up This 2.2kw Air Cooled Spindle Motor ER25 220V 18000RPM?

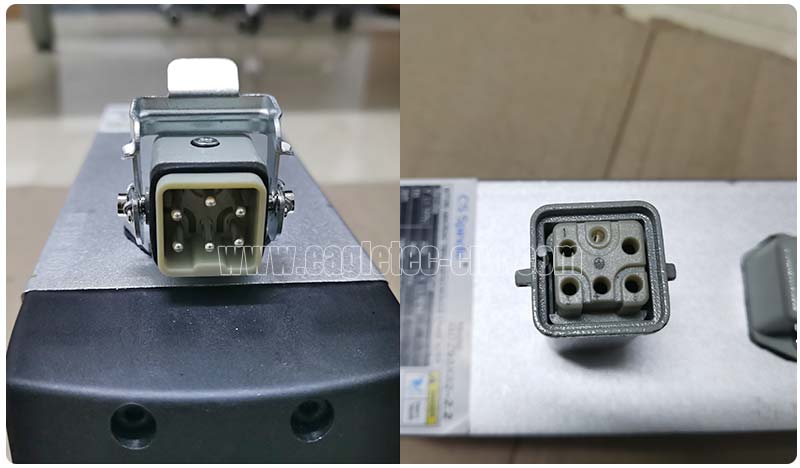

Please see the following picture. The spindle is equipped with 6-pin connectors with pin numbers 1, 2, 3, 4, 5, and PE. 1,2,3 need to be wired to U, V, W of the inverter. PE is ground protection. No. 4 and No. 5 pins needn't wiring.

6 pin connectors on 2.2kw square type air cooled spindle

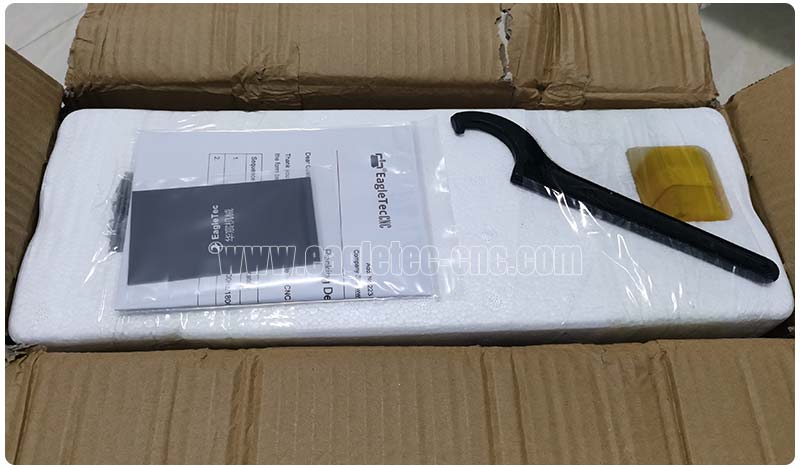

Packing List of 2.2KW Air Cooled CNC Spindle Motor

One full set consists of:

• Spindle Motor – 1PC

• Spanner – 1 PC

• ER25 Collet – 1PC

full set 2.2kw air cooling spindle in package

2.2 KW Air Cooled Spindle Motor Datasheet

Product No.	GDZ93X82-2.2
Motor Power	2.2KW
Shape	Square
Cooling Mode	By air
RPM	18,000
Volts	220
Frequency	300Hz
Ampere	10A
Collet Size	ER25
Lubrication	Grease
Suitable Tool Diameter	3.175mm to 16mm
Net Weight	7.7
Package Dimension	410x190x180mm
Application	CNC Router

FAQs about Square Type 2.2 KW Air Cooled Spindle GDZ93x82-2.2 ER25

Q: How To Pay and Buy It?

• Please contact us by any one of our contact details listed on the company site here: “online chat”, “inquire now icon”, Email, WhatsApp, WeChat, etc. Kindly tell us the items, model number, qty, and your location with zip code.

• We will quote you all-in costs including shipping charges.

• If you are ok to proceed. The proforma invoice will be issued to you for payment transfer purposes. And please arrange payment as per the PI.

• We arrange the delivery for your parcel on receipt of your payment. And will provide the tracking number to you.

Q: What Kind of Shipping Method for This Item? By Airplane Or By Courier?

A: The spindles would be sent to you by courier. Usually, it takes 5 to 7 days for you to receive the parcel.
